11th Generation OPS PC Module with 8GB RAM and 128GB SSD for Industrial Computing
11th Gen OPS Mini PC Module with Intel i5, 8GB RAM, 128GB SSD. Features 4x USB 3.0, 4x USB 2.0, 2x COM, 1x LPT ports, HDMI/VGA display. Compact 190x190x42mm design, 1.2kg weight. Ideal for digital signage, medical, industrial applications with reliable 0°C-60°C operation.
SSD OPS I5 Pc Module
,128g OPS I5 Pc Module
,11th Generation OPS Mini PC
11th Generation OPS I5 PC Module (8GB RAM | 128GB SSD)

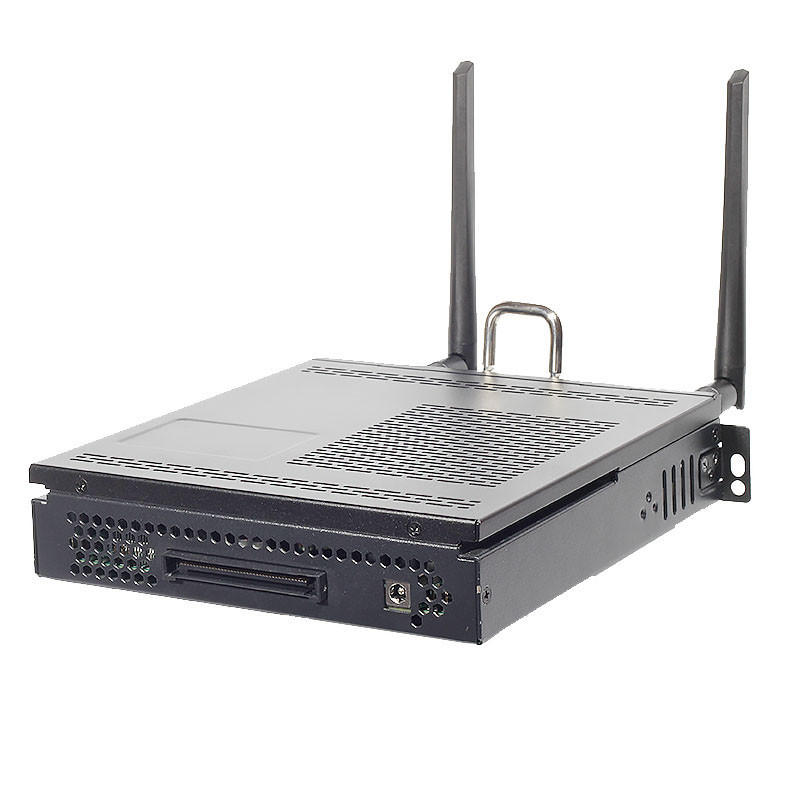

A high-performance, compact black OPS Mini PC featuring an Intel Core I5 processor and robust connectivity. Engineered for seamless integration into interactive flat panel displays (IFP), smart nano blackboards, and demanding B2B commercial environments.
Embedded Intelligence for Commercial Displays
The OPS3-I5-OPS PC Module is an advanced computing core built upon the reliable Intel H81/Q87/B85/H110 chipset family. Designed as a standardized OPS Slot PC, it slides effortlessly into compatible hardware, eliminating cable clutter and simplifying deployment for interactive teaching totems and capacitive multi-touch whiteboards.
With its robust 12V DC-in power supply and expansive operating temperature range (0°C to 60°C), this module is uniquely suited to thrive in both climate-controlled corporate boardrooms and demanding industrial automation settings. It perfectly bridges the gap between powerful standalone computing and integrated, smart display systems supporting both Windows and Android environments.
Architectural & Performance Highlights
Core Processing & Storage
- Powered by the highly efficient 11th Generation Intel Core i3/i5/i7 processor family (configured with i5).
- Dual-channel 2 x DDR3L SO-DIMM 1333/1600MHz memory support, accommodating up to 16GB (8GB included).
- Flexible hybrid storage architecture featuring 1 x 2.5" SATA HDD/SSD and 1 x mSATA interface (128GB SSD included).
Comprehensive I/O Connectivity
- High-speed data transfer via 4 x USB 3.0 and 4 x USB 2.0 ports.
- Dual independent display outputs featuring 1 x HDMI and 1 x VGA.
- Industrial-ready legacy interfaces including 2 x COM ports and 1 x LPT port.
- Immersive Realtek ALC662 6-channel HD Audio for rich multimedia playback.
Complete Technical Specifications
| Product Name | OPS PC Module (OPS3-I5-OPS) |
|---|---|
| Processor Series | 11th Generation Intel Core i3/i5/i7 |
| Motherboard Chipset | Intel H81/Q87/B85/H110 |
| System Memory | 2 x DDR3L SO-DIMM 1333/1600MHz, Up to 16GB (8GB Pre-installed) |
| Storage Configuration | 1 x 2.5" SATA HDD/SSD, 1 x mSATA (128GB SSD Pre-installed) |
| Internal Expansion | 1 x Mini-PCIe, 1 x mSATA |
| Display Interfaces | 1 x HDMI, 1 x VGA |
| Peripheral I/O | 4 x USB 3.0, 4 x USB 2.0, 2 x COM, 1 x LPT |
| Audio Controller | Realtek ALC662 6-channel HD Audio |
| Power Requirements | 12V DC-in |
| Physical Dimensions | 190mm x 190mm x 42mm |
| Net Weight | 1.2kg |
| Operating Temperature | 0°C ~ 60°C |
Industry Applications & Deployment
Weighing only 1.2kg with a minimal 190x190x42mm footprint, the OPS Mini PC module excels in scenarios where space is at a premium but high processing capability is mandatory.
- Education & Corporate: Powers 4K UHD digital writing pads and interactive flat panels.
- Digital Signage: Delivers continuous, stable media playback for retail networks.
- Medical & Automation: Provides localized computing for medical imaging systems and thin-client industrial terminals.
- Self-Service: Drives information kiosks and smart automated ticketing machines.
Built to stringent quality standards, our hardware ensures long-term operational stability.
OEM/ODM Customization & Factory-Direct Services
Hardware Customization
As a factory-direct provider, we offer comprehensive OEM/ODM customization. Tailor your OPS modules with specific processor tiers, expanded storage (HDD/SSD), custom I/O port layouts, and chassis branding to meet your exact bulk procurement needs.
24/7 Expert Support
Our highly trained engineering staff provides round-the-clock online assistance. Benefit from comprehensive troubleshooting, remote diagnostics, setup configuration, and regular software bug fixes to ensure your fleet operates flawlessly.
Global Warranty
We stand by our hardware with a comprehensive one-year limited warranty covering both hardware and software components. Global distributors and export partners rely on our diligent, timely repair and resolution protocols.
Frequently Asked Questions
Is this OPS module compatible with standard interactive flat panels?
Can the memory and storage be upgraded later?
Do you accommodate wholesale and bulk procurement orders?
What dual-OS environments does this hardware support?
