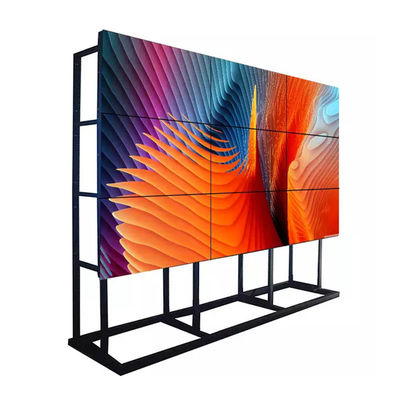

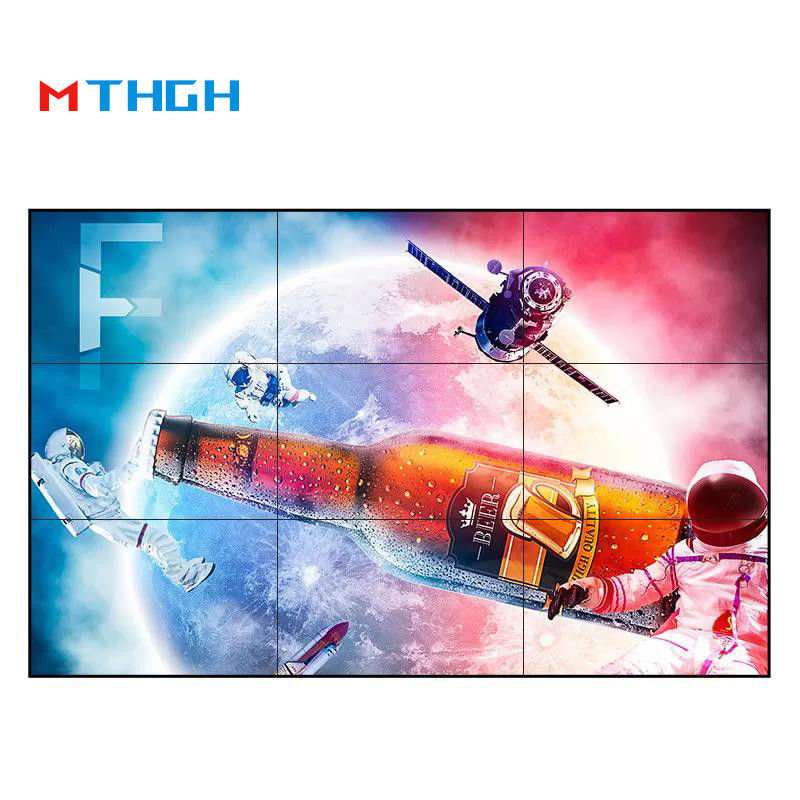

46 Inch Wide Color Gamut LCD Splicing Screen, LED Advertising Splicing Screen

Product Details

Place of Origin: China

Brand Name: MTHGH

Certification: CE FCC

Model Number: XYC-46

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: Negotiable

Packaging Details: Standard carton package : carton+ plastic bag+ foam+ honeycomb paperboard+ pack thread.

Delivery Time: 7-10 Work Days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 10000 Piece

Get Best Price
Product Details
Highlight:

Wide Color Gamut LCD Splicing Screen

,

LCD Splicing Screen Remote Control

,

lcd video panel Touch Control

Product Name:
46" LCD Splicing Screen
Control Method:
3840*2160 P
Size:
46 Inch
Power Supply:
AC 110~260(V)
Brightness:
500(Nits)
Type Of Light Source:
WLED
Physical Seams:
3.5(mm)
Perspective:
H 178° X V 178°
Enter:
BNC/DP/DVI/HDMI/VGA/AV/YPBPR
Operating Voltage:
100-240V 50/60Hz
Product Name:
46" LCD Splicing Screen
Control Method:
3840*2160 P
Size:
46 Inch
Power Supply:
AC 110~260(V)
Brightness:
500(Nits)
Type Of Light Source:
WLED
Physical Seams:
3.5(mm)
Perspective:
H 178° X V 178°
Enter:
BNC/DP/DVI/HDMI/VGA/AV/YPBPR
Operating Voltage:
100-240V 50/60Hz
Product Description

46 Inch LED LCD Video Advertising Splicing Screen

Easy to use.
Ultra-high definition LCD splicing screen.

MTHGH original 46 inch ultra-narrow border LCD splicing screen for outdoor and indoor use

Item No. Components Descriptions

1

46" 3.5mm bezel

500nits brightness,WLED Backlit,1920*1080 Resolution,with 1080(P) HDMI input

2

System controller

1 in 16 output HDMI splitter

3

Bracket

POP out bracket for 46" lcd video wall

4

Standard Accessories

English Manual,IR Controller,Power Cables,RJ45 Cables,RS232-RJ45 Connector

5

Packing

4/5 screens in 1 wooden case

Panel Specifications

LCD Technology

Original LCD

Active Screen Diagonal

46 inch

Panel Dimension(WxH)mm

(024X578)mm

Total Bezel Width(mm)

3.5

Aspect Ratio Size

16:9

Physical Resolution Size(P)

1920X1080(P)

Backlight system

WLED

Brightness(cd/m2)

500Nits

Contrast(typ)

3500:1(typ)

Viewing Angle(H*V)

178° * 178°(H*V)

Display Colors

8Bit,16.7M

Refresh Rate(Hz)

60(Hz)

Response Time

≤ 5ms

Life(hours)

> 60,000

MTBF(h)

> 100,000

Surface

Anti glare

Standby Power Consumption

<3(w)

Maximum Power Consumption

<=260(w)

Power Supply

AC100-240V 50/60 Hz

Cool Down

Low noise fans

Working Time Capacity(hours)

7X24X365

Working Temperature

0~50℃

Working Humidity

0.85.

Storage Temperature

~20°C~60°C or ~4°F~140°F

Storage Humidity

84% non-condensing

Net Weight(kg/unit)

26(kg/unit)

1080P HDMI input daisy chain board Signal Inputs, Outputs

DVI-I DUAL LINK

①.

HDMI input 2K

①.

VGA input

①.

RS232 IN

①.

RS232 OUT

②.

IR IN

①.

AC IN

AC(100~240)V

Color System Support

PAL/NTSC/SECAM

Control Type

IR Remote &Software Control

Menu Language

Chinese / English

Vertical/Horizontal Display

Support.
