⊙ Smart Eye Care
⊙ Smart Temperature Control
⊙ Ultra Low Throw Ratio Of 0.67
⊙ Instant Boot And 0-Second Shutdown
⊙ Ultra Contrast Ratio Of 20000:1
⊙ Non-Mercury Light Source, Safe And Environment Friendly
⊙ Full HD Image Quality Of 1920X1200
⊙ Ultra Long Lifespan Of 20000 Hours
Intelligent Temperature Detection, Showing A Prompt And Getting Into Standby Mode Automatically When Temperature Exceeds The Limit;
Multiple 3D Modes, Support XYC Link 3D; 3DTV PLAY Stereoscopic Projection, Support Blu-Ray 3D Video Play, Support 3D Classroom;
External Android System, Which Can Realize Projector Internationalization;
Fast Use, Instant Boot, 0-Second Shutdown, No Cooling Time, Protection Against Unexpected Power Outage , No Damage From Shutdown
Copper Pipe Cooling Technology
Specification

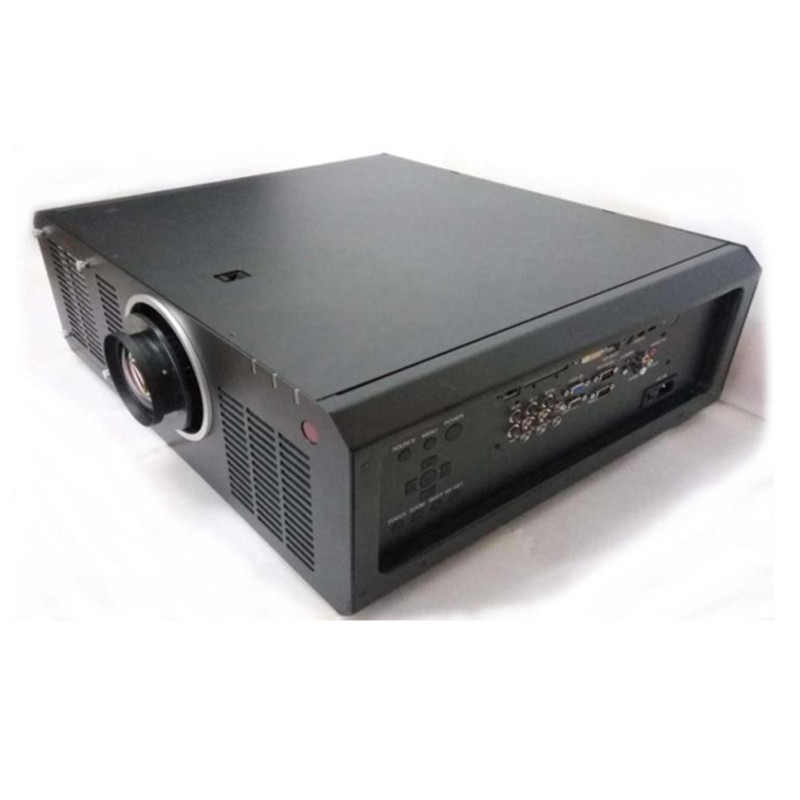

ILP Laser Projector
|
Specification
|
Technology
|
XYC projection technology, new generation WXGA DMD,chipest:0.67"
|
Resolution
|
1920X1200(FHD)
|
Brightness
|
8000lumens
|
Contrast
|
≥20000:1
|
Light Source
|
Pure laser source (Mercury-free)
|
Life time
|
20000 Hours
|
Supporting Projection Ratio
|
16:10
|
Distance Ratio
|
0.67(Ultra short focus lens)
|
Throw Distance
(Projector to 180inch screen) |
5.5M distance (2.6*4.3M)
|
Throw Distance
(Projector to 180inch screen) lens to picture |
180-250inch
|
Lens Shift
|
130%+/-5%
|
Screen Size
|
180-250 inch
|
Auto keystone Correction
|
± 30°
|
Format
|
★Support FULL 3D format
|
PC (Resolution)
|
VGA (640 x 480) to WUXGA (1920 x 720)
|
Radio
|
NTSC, PAL, SECAM,SDTV(480i/576i), EDTV(480p/ 576p), HDTV(720p, 1080i/p 60Hz)
|
Input Port
|
VGA in*1,Composite Video*1,S-video*1, Component video*1, HDMI input*2, Audio in*1, Audio L/R in*1 , mini-USB*1;
|
Output Port
|
VGA out*1, audio out*1;
|
Controller port
|
RS232 (DB-9pin)*1
|
Speaker
|
10Wx 1 (Built in)
|
Net Weight
|
7kgs
|
Gross Weight
|
8.7kgs
|
Dimensions(WxHxD)
|
550x490x193 mm (W xHx D),
|
Packing Dimensions (WxHxD)
|
590x535x285(mm)
|
accessories
|
HDMIX2; RGBX2(RGB IN 2 Share with RGB Out); Video(RCA)X1; S-VideoX1;Audio in(L/R)--RCAX1; Audio in(mini jack,3.5mm)X1; MIC X1; Output: Audio out(mini-jack,3.5mm)X1 RS232X1; LAN(RJ45); USB(type B only for debug)X1
|
Online Resources Are Available For Reference. Please Ask The Factory Salesperson For Details.
