DID Narrow Bezel Splicing LCD Video Wall With Video Wall Controller Indoor

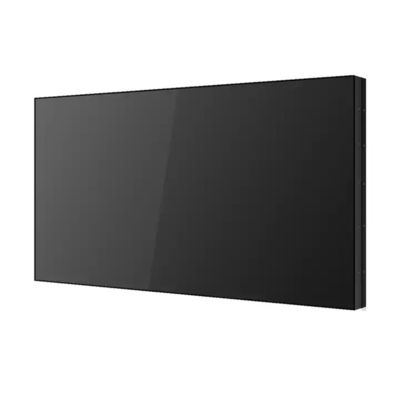

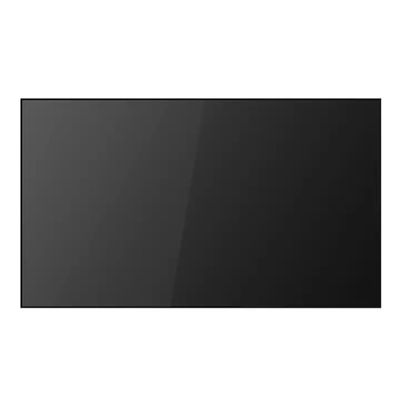

MTHGH ultra narrow bezel 46 inch LCD video wall,big advertising screen
Product application occasions
Public places: subways, airports, bookstores, parks, exhibition halls, gymnasiums, museums,
Leisure: cinemas, gyms, resorts, clubs, rooms, bars, Internet cafes, beauty salons, golf courses, etc.;
Institutions: banks, banks, companies, pawn shops, etc.;
Commercial institutions: jewelry stores, large shopping malls, chain franchise stores, hypermarkets, specialty stores, star hotels, restaurants, travel agencies, pharmacies, etc.;
Public utilities: hospitals, schools, telecommunications, post offices, etc.;
Real estate properties: apartments, villas, office buildings, commercial buildings, model houses, sales offices, etc.
|
Item No.
|
Components
|
Descriptions
|
|
1
|
46" XYC 3.5mm bezel
|
500nits brightness,WLED Backlit,3840*2160 resolution,with 1080P HDMI input
|
|
2
|
System controller
|
1 in 16 output HDMI splitter
|
|
3
|
Bracket
|
POP out bracket for 46" lcd video wall
|
|
4
|
Standard Accessories
|
English Manual,IR Controller,Power Cables,RJ45 Cables,RS232-RJ45 Connector
|
|
5
|
Packing
|
4/5 screens in 1 wooden case
|
|
Panel Specifications
|
|
Display Technology
|
Original LCD screen
|
|
Size Customizable
|
46 Inch customizable 49"55"65"75
|
|
Panel Dimension
|
1024X578(WxH)mm
|
|
Total Bezel Width
|
3.5(mm)
|
|
Aspect Ratio
|
16 : 9
|
|
Physical Resolution
|
3840*2160
|
|
Backlight System
|
WLED
|
|
Luminance
|
500(nits)cd/m2
|
|
Contrast
|
3500:1 typ
|
|
Viewing Angle
|
178° * 178°(H * V)
|
|
Display Colors
|
8(Bit),16.7 M
|
|
Refresh Rate
|
60 Hz
|
|
Response Time
|
≤ 6ms
|
|
Life
|
>60,000(hrs)
|
|
MTBF
|
> 100,000 h
|
|
Surface
|
Anti-glare
|
|
Standby Power Consumption
|
< 3(W)
|
|
Maximum Power Consumption
|
≤ 260(W)
|
|
Power Supply
|
AC 100~240(V) 50/60(HZ)
|
|
Cooling
|
Low noise fans
|
|
Working Time Capacity
|
7·24·365hours
|
|
Working Temperature
|
0~50(℃)
|
|
Working Humidity
|
0.85
|
|
Storage Temperature
|
~20~60(°C) or ~4~140(°F)
|
|
Storage Humidity
|
85% non-condensing
|
|
Net Weight
|
26(kg/unit)
|
|
1080P HDMI input daisy chain board Signal Inputs, Outputs
|
|
DVI-I DUAL LINK
|
1.
|
|
HDMI input 4K
|
1.
|
|
VGA input
|
1.
|
|
RS232 IN
|
1.
|
|
RS232 OUT
|
2.
|
|
IR IN
|
1.
|
|
AC IN
|
AC100V~240V.
|
|
Color System Support
|
PAL/NTSC/SECAM
|
|
Control Type
|
IR Remote &Software Control
|
|
Menu Language
|
English
|
|
Vertical/Horizontal Display
|
Support
|
