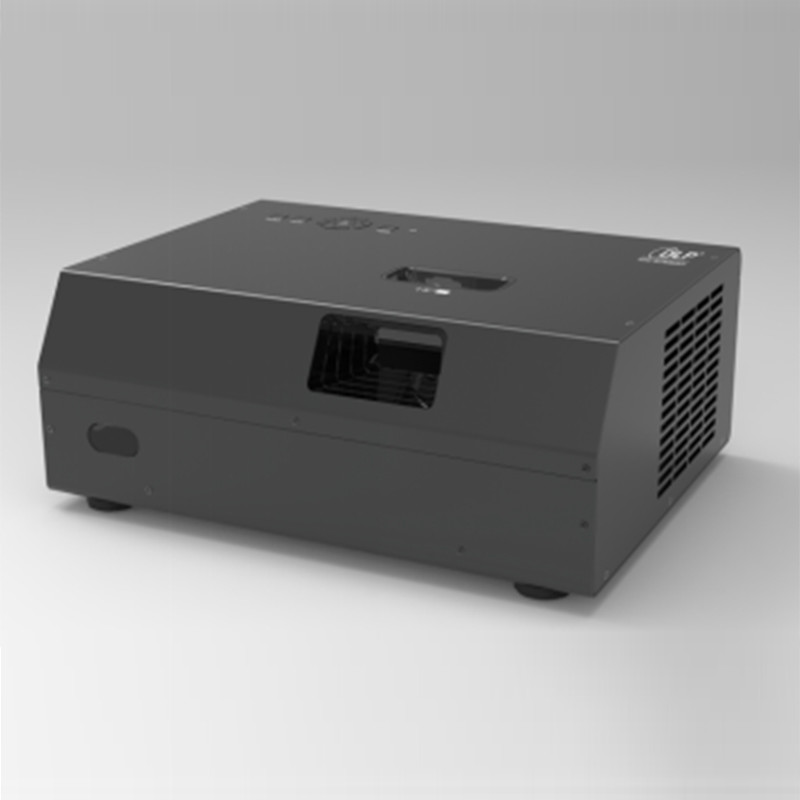

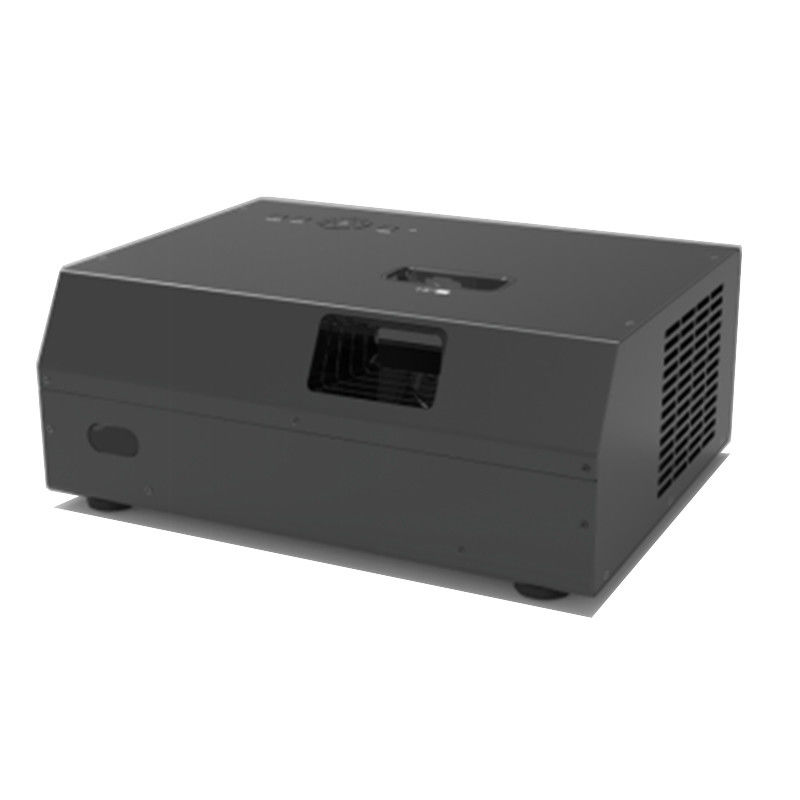

6500 Lumens XYC Short Throw Laser Projector 1920X1080 For Teach
⊙ Smart DX-65.
⊙ Smart Eye Care
⊙ Smart Temperature Control
⊙ Ultra Low Throw Ratio Of "1.2-2.16:10.47:1,"
⊙ Instant Boot And 0-Second Shutdown
⊙ Ultra Contrast Ratio Of 20000:1.
⊙ Non-Mercury Light Source, Safe And Environment Friendly.
⊙ Full HD Image Quality Of 3840*2160.
⊙ Ultra Long Lifespan Of 20000 Hours.
⊙ The uniformity is as high as 90%.
ILP Laser Projector
|
Specification
|
Technology
|
XYC Projection Technology, New Generation WXGA DMD,Chipest:0.65"
|
Resolution
|
1920*1080 (FHD)
|
Brightness
|
6500 Lumens
|
Contrast
|
20000:1
|
Light Source
|
Pure Laser Source (Mercury-free)
|
Life time
|
20000 Hours
|
Supporting Projection Ratio
|
16:10
|
Distance Ratio
|
1.2-2.16:10.47:1(Ultra short focus lens)
|
Throw Distance
(Projector to 82inch screen) |
≤100 mm
|
Throw Distance
(Projector to 82inch screen) lens to picture |
150-200 Inch
|
Lens Shift
|
130%+/-5%
|
Screen Size
|
150/200 Inch
|
Auto keystone Correction
|
± 30°
|
Format
|
★Support FULL 3D format
|
PC (Resolution)
|
VGA (640 x 480) to WUXGA (1920 x 720)
|
Radio
|
NTSC, PAL, SECAM,SDTV(480i/576i), EDTV(480p/ 576p), HDTV(720p, 1080i/p 60Hz)
|
Input Port
|
VGA in*1,Composite Video*1,S-video*1, Component video*1, HDMI input*2, Audio in*1, Audio L/R in*1 , mini-USB*1;
|
Output Port
|
VGA out*1, audio out*1;
|
Controller port
|
RS232 (DB-9pin)*1
|
Speaker
|
1*10W (Built in)
|
Net Weight
|
12 KG
|
Gross Weight
|
24 Pounds
|
Dimensions(WxHxD)
|
525x484x186 (mm)
|
Packing Dimensions (WxHxD)
|
545x475x255 (mm)
|
accessories
|
HDMIX2; RGBX2(RGB IN 2 Share with RGB Out); Video(RCA)X1; S-VideoX1;Audio in(L/R)--RCAX1; Audio in(mini jack,3.5mm)X1; MIC X1; Output: Audio out(mini-jack,3.5mm)X1 RS232X1; LAN(RJ45); USB(type B only for debug)X1
|
6500 Lumens
-[Certification]-
Online Resources Are Available For Reference. Please Ask The Factory Salesperson For Details.
