Big Advertising Screen 178x178 Viewing Angle YPBPR Signal Support

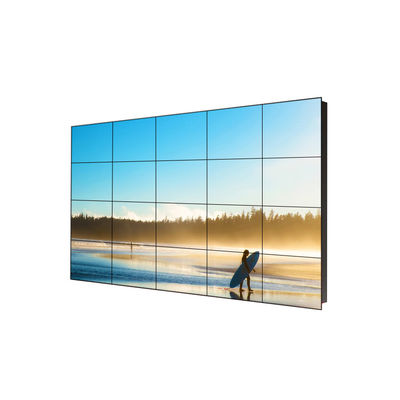

MTHGH ultra narrow bezel 75 inch lcd video wall,big advertising screen
Product application scenarios:
Places: Control rooms, business buildings, restaurants, conference rooms, sales offices, clothing stores, technology exhibition halls, traffic control, shopping malls
Item No. | Components | Descriptions | |
01 |
75"3.5mm bezel |
500 nits brightness,WLED Backlit,1920*1080 Resolution,with 1080P HDMI input |
|
02 |
System controller |
1 in 16 output HDMI splitter |
|
03 |
Bracket |
POP out bracket for 46" lcd video wall |
|
04 |
Standard Accessories |
English Manual,IR Controller,Power Cables,RJ45 Cables,RS232-RJ45 Connector |
|
05 |
Packing |
4/5 screens in 1 wooden case |
|
Panel Specifications | |||
LCD Technology |
Original Samsung DID LCD |
||
Active Screen Diagonal |
75" INCH |
||
Panel Dimension(WxH) |
1024*578mm |
||
Total Bezel Width |
3.5 mm |
||
Aspect Ratio |
16:9 |
||
Physical Resolution |
1920*1080 |
||
Backlight System |
WLED |
||
Luminance(nits) |
500 cd/m2 |
||
Contrast(typ) |
3500:1 |
||
Viewing Angle |
H 178°|V 178° |
||
Display Colors |
8Bit,16.7 M |
||
Refresh Rate |
60 Hz |
||
Response Time |
<=6ms |
||
Life(hrs) |
>50,000(hrs) |
||
MTBF |
> 100,000 h |
||
Surface |
Anti-glare |
||
Standby Power Consumption |
<3W |
||
Maximum Power Consumption |
<=260W |
||
Power Supply |
AC100~240V 50/60 HZ |
||
Cooling |
Low noise fans |
||
Working Time Capacity |
7x24x365hours |
||
Working Temperature |
0℃~50℃ |
||
Working Humidity |
0.85 |
||
Storage Temperature |
-20-60°C | -4-140°F |
||
Storage Humidity |
85% non-condensing |
||
Net Weight |
26kg/unit |
||
1080P HDMI input daisy chain board Signal Inputs, Outputs | |||
DVI-I DUAL LINK |
1 |
||
HDMI input 2K |
1 |
||
VGA input |
1 |
||
RS232 IN |
1 |
||
RS232 OUT |
2 |
||
IR IN |
1 |
||
AC IN |
AC100V-240V |
||
Color System Support |
PAL/NTSC/SECAM |
||
Control Type |
IR Remote &Software Control |
||
Menu Language |
English OR Chinese |
||
Vertical/Horizontal Display |
Support |
