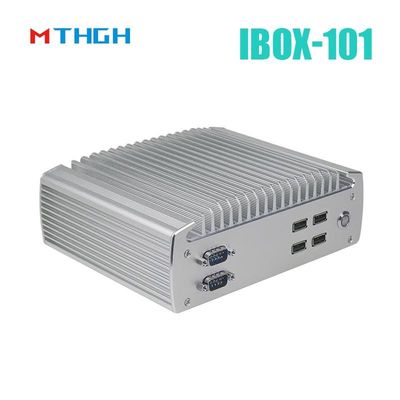

IBOX-101 Plus Industrial Mini PC With HDMI Mini PCIe/MSATA Support Windows/Liunx

Name: IBOX-101 Plus Industrial Mini PC With HDMI Mini PCIe/MSATA Support Windows/Liunx
Brand: Xingyicheng (Shenzhen) Technology Co., Ltd.
SKU: IBOX-101
Availability: InStock

Product Details

Place of Origin: China

Brand Name: MTHGH

Certification: CE/CCC/FCC Class A/ROHS

Model Number: IBOX-101

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: Negotiable

Packaging Details: Standard carton package : carton+ plastic bag+ foam+ honeycomb paperboard+ pack thread.

Delivery Time: 5-10 work days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 10000 Set

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                Industrial Mini PC With HDMI, MSATA Industrial Mini PC, Mini PCIe Industrial Mini PC


Model:	IBOX-101 High End Version	Equipment Type:	Industrial Computer
Brand:	MTHGH	Support OS:	Windows/Liunx
Product Features:	Industry	RAM:	8G
Processor:	Onboard Intel Celeron J1900（Quad Core Quad Threading，1.99GHz，TDP: 10W）	Temp:	-20℃～60℃
Expansion Slots:	Mini PCIe, MSATA	Application:	For Entry Exit Terminal

Model:	IBOX-101 High End Version
Equipment Type:	Industrial Computer
Brand:	MTHGH
Support OS:	Windows/Liunx
Product Features:	Industry
RAM:	8G
Processor:	Onboard Intel Celeron J1900（Quad Core Quad Threading，1.99GHz，TDP: 10W）
Temp:	-20℃～60℃
Expansion Slots:	Mini PCIe, MSATA
Application:	For Entry Exit Terminal

Product Description

Industrial Mini PCIBOX-101 Plus

Intel® Celeron® J1900 Quad Core Processor Fanless Industrial PC

Energy saving platform
MTHGH's IBOX-101 is a fanless industrial box computer, perfect for micro applications. This embedded hardware platform adopts Intel ® The Celeron ® J1900 processor design boasts excellent performance and energy efficiency.
Rich and diverse I/O interfaces
1.4*USB2.0,2*COM,1*Power Switch
2.1*USB3.0,1*USB2.0,4*COM(COM1,COM2 RS232/485 Optional),1*3PIN Phoenix connector
3.2*1000M LAN,1*HDMI,1*DC 12V Input,1*Mic,1*Line Out

No fan, sturdy design
IBOX-101 has high performance, reliability in harsh environments, and noise free operation, making it very suitable for a wide range of industrial applications.

Features:

◇ All aluminum structure,fanless design；

◇ Support Intel Celeron J1900 quad core processor；

◇ Max. Support DDR3L 8G RAM；

◇ Support 1*MSATA Slot,1*2.5”HDD；

◇ Support 1*Mini PCIE Slot；

◇ Support 6*COM(COM1,COM2 RS232/485 Optional)；

◇ Support OS:

IBOX-101 Plus Industrial Mini PC With HDMI Mini PCIe/MSATA Support Windows/Liunx 4

IBOX-101 Plus Industrial Mini PC With HDMI Mini PCIe/MSATA Support Windows/Liunx 5

Specification:

Model	IBOX-101 Plus
Color	Silver(Color can be customized)
Material	High-quality all aluminum,surface anodic oxidation
Processor	Onboard Intel Celeron J1900(Quad core quad threading,1.99GHz,TDP: 10W)
RAM	Support 1*DDR3L 1333/1600MHz SODIMM RAM Slot,Max turbo 8GB
BIOS	AMI UEFI BIOS
Display Chip	Integrated Intel HD Graphics
Display Port	1HDMI,1Built-in LVDS (Support synchronous and asynchronous dual display)

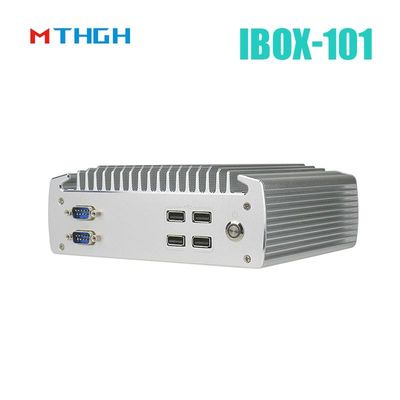

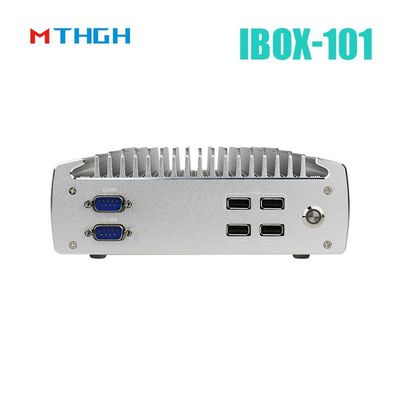

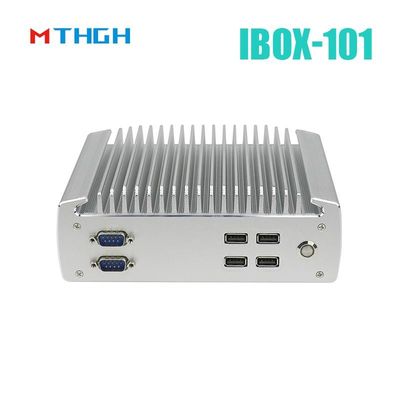

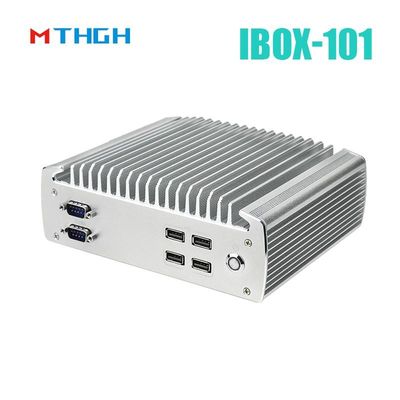

Front I/O	4USB2.0,2COM,1*Power Switch

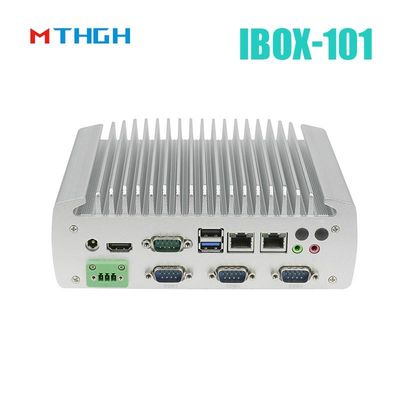

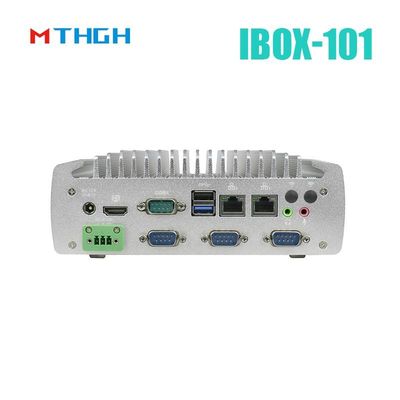

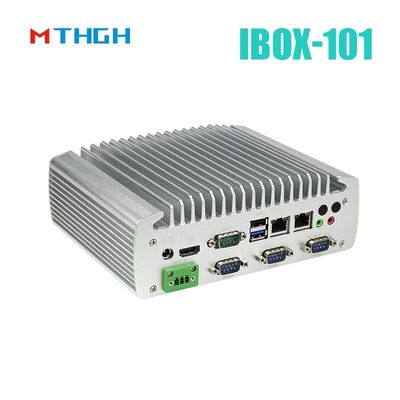

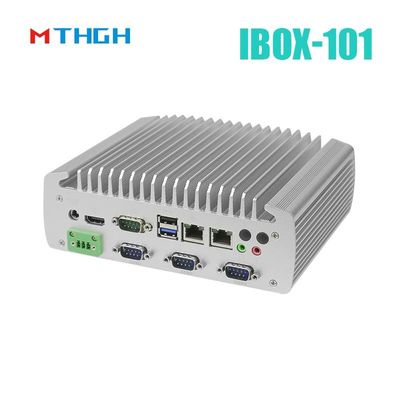

Rear I/O	1USB3.0,1USB2.0,4COM(COM1,COM2 RS232/485 Optional),13PIN Phoenix connector
	21000M LAN,1HDMI,1DC 12V Input,1Mic,1*Line Out
Expansion Slot	Support 1*MINI PCIE Slot(Support MSATA)；
	Support 1*MINI PCIE Slot(WIFI/3G/4G Optional),Embedded SIM Slot；
Network	2*Intel i211-AT 1000M LAN
Storage	Support 1MSATA Slot,12.5”HDD
Input Voltage	Support DC 12V Input
Other Function	Auto power on when there is electricity, Timing boot,Wake on LAN,PXE boot,Watchdog(0～255 level)(Standard version doesn’t set these function)
Work Temp	0℃ ～ +50℃(Commercial HDD),-20℃ ～ +60℃(Industrial SSD),Surface air flow
Work Humidity	5% ～ 95% non-condensing
Certificates	CE, CCC, FCC Class A, ROHS
Dimension	186 * 150 * 66mm【Not include the brackets】
Net Weight	1.6kg【Not include the brackets】
Application	Industrial Automation, Medical, Logistics Transportation, Warehouse, Electronic Education etc.

IBOX-101 Plus Drawing:

Accessories List
Name	Quantity	Specification
Power Adapter	1	12V 5A
Power Cord	1	Any Plug Optional (China, US, EU, UK etc.)
Bracket	2	Standard【Included】
CD Driver	1	Neutral
HDMI to VGA Cable	1	HDMI to VGA Cable【Included】

Order Information
Configuration 1	IBOX-101 Plus	Intel Celeron J1900	Standard Port

IBOX-101 Plus Industrial Mini PC With HDMI Mini PCIe/MSATA Support Windows/Liunx 7

IBOX-101 Plus Industrial Mini PC With HDMI Mini PCIe/MSATA Support Windows/Liunx 8

IBOX-101 Plus Industrial Mini PC With HDMI Mini PCIe/MSATA Support Windows/Liunx 9

IBOX-101 Plus Industrial Mini PC With HDMI Mini PCIe/MSATA Support Windows/Liunx 10

IBOX-101 Plus Industrial Mini PC With HDMI Mini PCIe/MSATA Support Windows/Liunx 11

IBOX-101 Plus Industrial Mini PC With HDMI Mini PCIe/MSATA Support Windows/Liunx 12

IBOX-101 Plus Industrial Mini PC With HDMI Mini PCIe/MSATA Support Windows/Liunx 13
