Fanless Industrial Fanless Mini PC With Intel Core I5-7200U Processor

Name: Fanless Industrial Fanless Mini PC With Intel Core I5-7200U Processor
Brand: Xingyicheng (Shenzhen) Technology Co., Ltd.
SKU: IBOX-601
Availability: InStock

Product Details

Place of Origin: China

Brand Name: MTHGH

Certification: CE/CCC/FCC Class A/ROHS

Model Number: IBOX-601

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: Negotiable

Packaging Details: Standard carton package : carton+ plastic bag+ foam+ honeycomb paperboard+ pack thread.

Delivery Time: 7-10 work days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 10000 Set

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                Industrial Fanless Mini PC, Fanless Industrial Mini PC, I5-7200U Processor Fanless Mini PC


Type:	Industrial Computer	Com Port:	Support RS232/RS422/RS485
Expansion Slots:	Mini PCIe, MSATA	Temp:	-20℃～60℃
Serial Ports:	4 *COM	Processor:	Intel Core I5-7200U OR I3-6100U/I7-6500U
HDMI:	X*1	VGA:	X*1
Application:	For Entry Exit Terminal

Type:	Industrial Computer
Com Port:	Support RS232/RS422/RS485
Expansion Slots:	Mini PCIe, MSATA
Temp:	-20℃～60℃
Serial Ports:	4 *COM
Processor:	Intel Core I5-7200U OR I3-6100U/I7-6500U
HDMI:	X*1
VGA:	X*1
Application:	For Entry Exit Terminal

Product Description

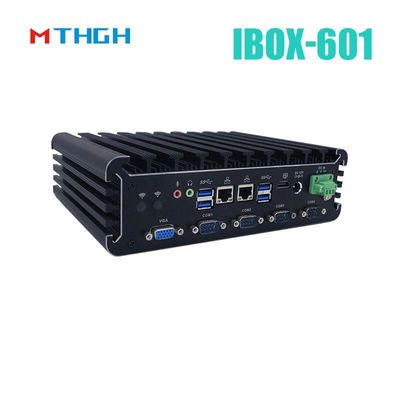

Industrial Mini PC IBOX-601 Plus

Intel the 6^thor 7^th Core™ i3/i5/i7 Processor

Fanless Industrial PC

Features:

◇ All aluminum structure,fanless design；

◇ Onboard Intel 6th or 7th Generation Core i3/i5/i7；

◇ Support 1*DDR4 Slot,Max. Support 16G；

◇ Support 1*MSATA Slot,1*2.5” HDD；

◇ Support 6*COM(2*RS232/485 Optional)

◇ Support DC 9～19V wide voltage Input(DC 9～36V Optional)

◇ Support OS:

Specification:

Model	IBOX-601 Plus
Color	Black(Color can be customized)
Material	High-quality all aluminum,surface anodic oxidation
Processor	Onboard Intel Core i3 6100U(Dual core quad threading,2.3GHz,TDP: 15W)
	Onboard Intel Core i5 7200U(Dual core quad threading,2.5GHz,Max turbo 3.1GHz)
	Onboard Intel Core i7 6500U(Dual core quad threading,2.5GHz,Max turbo 3.1GHz)
CPU Architecture	Skylake-U / KabyLake-U
RAM	Support 1*DDR4 1866/2133 SODIMM RAM Slot,Max. Support 16GB
BIOS	AMI EFI BIOS
Display Chip	Integrated Intel HD Graphics 520/620
Display Port	1VGA,1HDMI

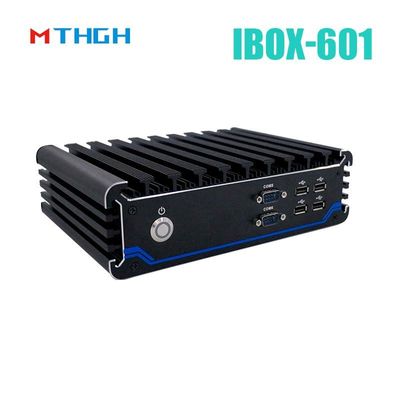

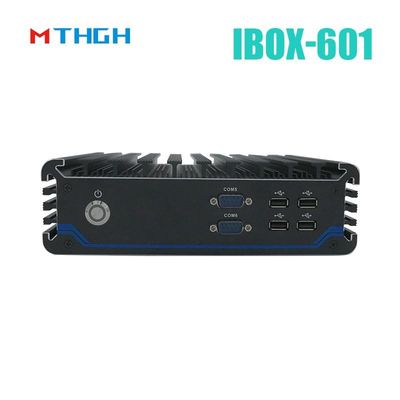

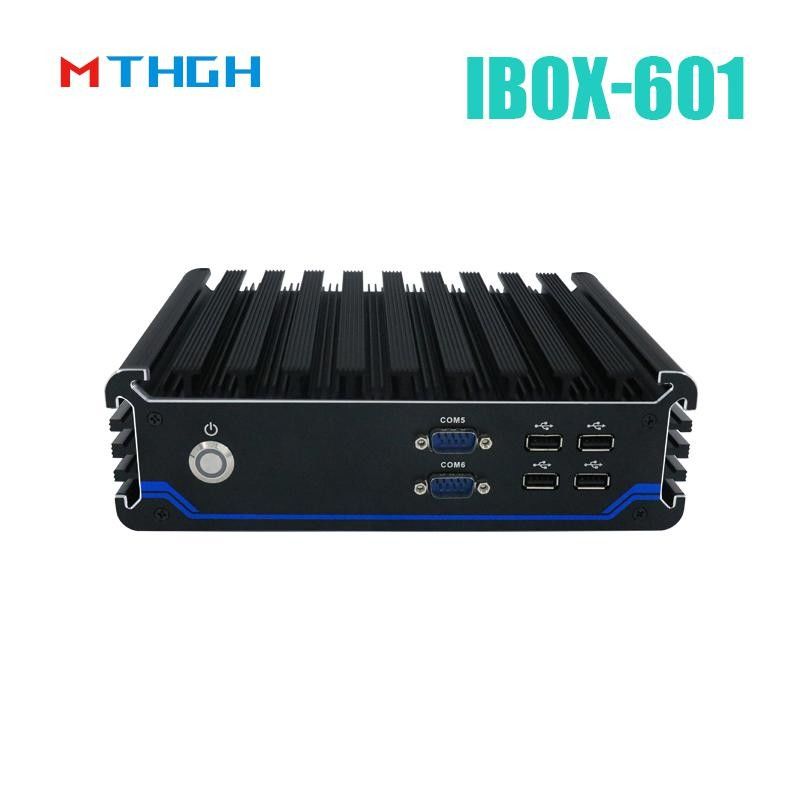

Front I/O	4USB2.0,2COM,1*Power Switch

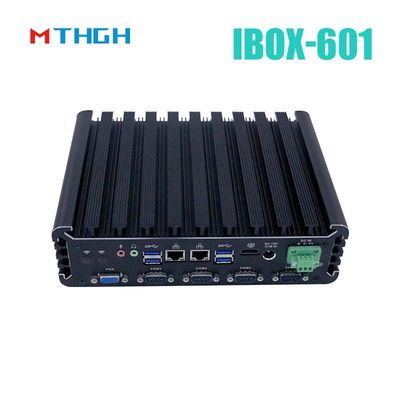

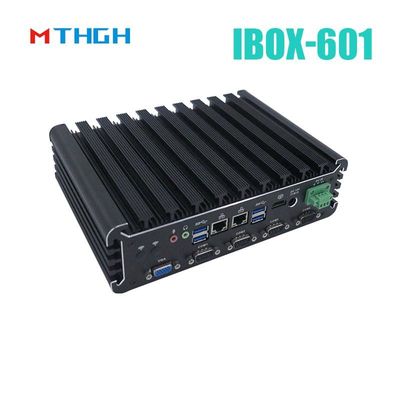

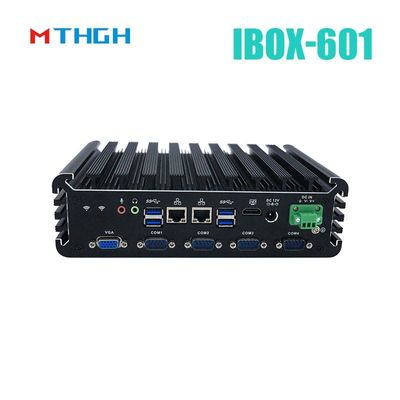

Rear I/O	4USB3.0,4COM(COM4,COM5 RS232/485 Optional),2*Intel 1000M LAN
	1VGA,1HDMI,1DC Input,13PIN Power Supply Phoenix Connector
	1Mic,1Line Out
Expansion Slot	Support 1*MINI PCIE Slot(Support MSATA)；
	Support 1*MINI PCIE Slot(WIFI/3G/4G Choose one from three),Embedded SIM Slot；
	Optional Ports:GPIO,PS/2(Standard version doesn’t include these ports)
Network	2*Intel i211-AT 10/100/1000M LAN
Storage	Support 1MSATA Slot,12.5” HDD
Input Voltage	Support DC 9～19V Input(DC 9～36V Optional)
Other Function	Auto power on when there is electricity,Timing boot,Wake on LAN,PXE boot,Watchdog(0～255 level)(Standard version doesn’t set these function)
Work Temp	0℃ ～ +50℃(Commercial HDD),-20℃ ～ +60℃(Industrial SSD),Surface air flow
Work Humidity	5% ～ 95% non-condensing
Certificates	CE, CCC, FCC Class A, ROHS
Dimension	230 * 166 * 68 mm【Not include bracket】
Net Weight	3.0 kg【Not include bracket】
Application	Industrial automation, medical, logistics transportation, warehouse, electronic education etc.

IBOX-601 Plus Drawing:

Fanless Industrial Fanless Mini PC With Intel Core I5-7200U Processor 6

Accessories List
Name	Quantity	Specification
Power Adapter	1	12V 5A
Power Cord	1	Any Plug Optional (China, US, EU, UK etc.)
Bracket	2	Standard
CD Driver	1	Neutral

Order Information
Configuration 1	IBOX-601 Plus(i3)	Intel Core i3 6100U	Standard Port
Configuration 2		Intel Core i3 6100U	Support 2*RS485
Configuration 3	IBOX-601 Plus(i5)	Intel Core i5 7200U	Standard Port
Configuration 4		Intel Core i5 7200U	Support 2*RS485
Configuration 5	IBOX-601 Plus(i7)	Intel Core i7 6500U	Standard Port
Configuration 6		Intel Core i7 6500U	Support 2*RS485
