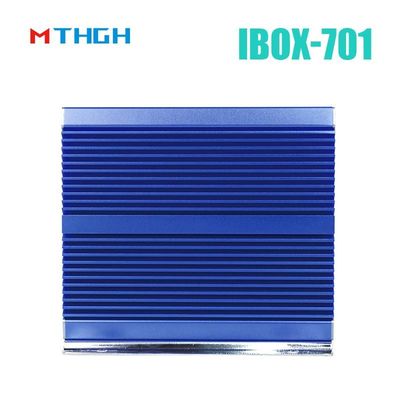

Intel Core I5 7200U Mini PCIe Industrial Fanless Mini PC IBOX-701Plus

1 Set
MOQ
Negotiable
Price
Intel Core I5 7200U Mini PCIe Industrial Fanless Mini PC IBOX-701Plus
Features Gallery Product Description Request A Quote
Features
Specifications
Expansion Slots: Mini PCIe, MSATA
Hdd Rotation Speed: SSD
Processor: Intel Core I5-7200U
Hard Drive Capacity: 256GB
Display Port: DP,HDMI,VGA
Front I/O: 6*USB2.0,2*COM,1*Power Switch
Serial Ports: 4 *COM
Application: For Entry Exit Terminal
Highlight:

Industrial Fanless Mini PC

,

Fanless Mini PC

Basic Infomation
Place of Origin: China
Brand Name: MTHGH
Certification: CE/CCC/FCC Class A/ROHS
Model Number: IBOX-701
Payment & Shipping Terms
Packaging Details: Standard carton package : carton+ plastic bag+ foam+ honeycomb paperboard+ pack thread.
Delivery Time: 7-10 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000 Set
Product Description

Features:

  • Onboard Intel Celeron 3865U, 7th generation Core i5/i7;
  • Supports DDR4 1866/2133 16G memory;
  • Supports 1 MSATA slot, 1 2.5-inch hard disk slot;
  • Supports WIFI/3G/4G module (choose one of three);
  • Supports 6 COM ports (2 optional RS232/422/485 mode)
  • Supports DC 9~36V wide voltage input, supports positive and negative reverse connection protection;



Technical Parameters:

Product Specifications
machine type IBOX-701 Plus
Chassis color Blue + gray (color can be customized)
Chassis material High quality aluminum alloy, hard anodized surface
processor Onboard Intel Celeron 3865U (dual-core dual-thread, 2MB L3 cache, main frequency 1.8 GHz)
Onboard Intel Core i5 7200U (dual-core four-thread, 3MB L3 cache, main frequency 2.5GHz, turbo frequency up to 3.1GHz)
Onboard Intel Core i7 7500U (dual-core, four-thread, 4MB L3 cache, main frequency 2.7GHz, turbo frequency up to 3.5GHz)
CPU Supports 1 DDR4 1866/2133 SODIMM memory slot, up to 16GB
BIOS AMI EFI BIOS
Display chip Integrated Intel HD Graphics 610/620 core graphics card
Display Interface 1 VGA interface, 1 HDMI built-in pin (supports synchronous and asynchronous dual display)

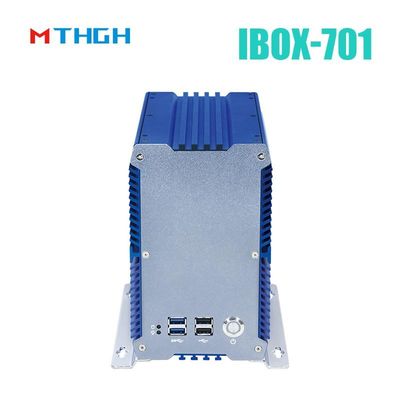

Front panel I/O ports 2 USB3.0, 2 USB2.0, 2 indicator lights, 1 power switch

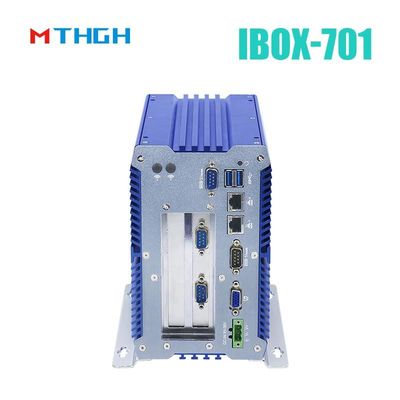

Rear Panel I/O Ports 2 USB3.0, 2 Intel Gigabit Ethernet ports, 1 VGA port, 1 3P power supply Phoenix terminal,
1 clear COMS button, 4 COM ports as standard (6 COM ports optional, COM1, 2 optional RS232/422/485 mode),
Extension ports Support 1 MINI PCIE slot (optional WIFI/3G/4G), with SIM card holder
Support 1 MINI PCIE slot (support MSATA)
Optional interface (standard delivery does not include this interface): GPIO interface, audio interface, HDMI interface, 2 COM ports
Expansion slots 1 PCIE X4 slot + 1 PCI slot (32bit), built-in 1 USB2.0 interface
(Choose one of three) 2 PCI slots (32bit), built-in 1 USB2.0 interface
  1 PCIE X4 slot + 1 PCIE X1 slot, built-in 1 USB2.0 port
Network Interface 2 x Intel i211-AT 10/100/1000M Ethernet
Storage Interface Supports 1 MSATA slot, 1 onboard 2.5-inch hard disk slot
Input voltage DC 9~36V wide voltage input, supports positive and negative polarity reverse protection
other functions Power on, scheduled startup, network wake-up, PXE startup, watchdog (0-255 levels)
Operating temperature 0℃ ~ +50℃ (commercial HDD), -20℃ ~ +60℃ (industrial SSD), surface air flow
Working humidity 5% to 95% non-condensing state
safety certificate CE, CCC, FCC Class A, ROHS
Product Size 215 * 185 * 115 mm [without wall mount]
Total Weight 3.6 kg [without wall mount]
Application Areas Industrial automation, medical, logistics, transportation, warehousing, machine vision and other fields


Product five views:

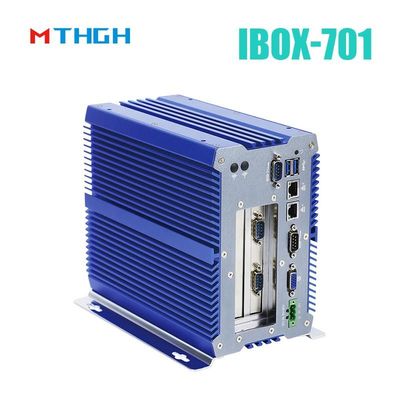

Intel Core I5 7200U Mini PCIe Industrial Fanless Mini PC IBOX-701Plus 0

IBOX-701 Drawing

Applications:

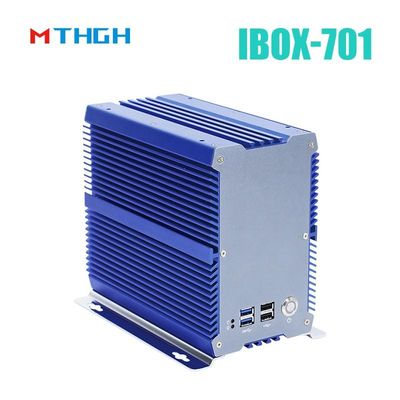

Intel Core I5 7200U Mini PCIe Industrial Fanless Mini PC IBOX-701Plus 1

Intel Core I5 7200U Mini PCIe Industrial Fanless Mini PC IBOX-701Plus 2

Intel Core I5 7200U Mini PCIe Industrial Fanless Mini PC IBOX-701Plus 3

Intel Core I5 7200U Mini PCIe Industrial Fanless Mini PC IBOX-701Plus 4

Intel Core I5 7200U Mini PCIe Industrial Fanless Mini PC IBOX-701Plus 5

Intel Core I5 7200U Mini PCIe Industrial Fanless Mini PC IBOX-701Plus 6

packing list:

packing list
Name quantity Specification
adapter 1 Optional 12V 5A/12V 10A
power cable 1 Optional national standard, American standard, British standard, etc.
Certificate 1 Yanling logo/neutral
Warranty Card 1 Yanling logo/neutral
Wall mount 2 Applicable to standard back hanging
Motherboard CD 1 Neutral



Optional Information:

Optional Information
Configuration 1 IB0X-701 Plus Intel Celeron3865U Standard Interface
PCIE X4 + PCI
Configuration 2 Intel Core i5 7200U
Configuration 3 Intel Core i7 7500U
Configuration 4 Intel Celeron3865U Standard Interface, 2 PCI
Configuration 5 Intel Core i5 7200U
Configuration 6 Intel Core i77500U
Configuration 7 Intel Celeron3865U Standard Interface
PCIE X4 + PCIE X1
Configuration 8 Intel Core i5:7200U
Configuration 9 Intel Core i7 7500U
