Name: IBOX-708 SSD Intel Core I5 6500T Industrial Mini PC All Aluminum Chassis -20℃~60℃ Temp
Brand: Xingyicheng (Shenzhen) Technology Co., Ltd.
SKU: IBOX-708
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Model: IBOX-708

Processor: Intel Core I5-6500T

Hdd Rotation Speed: SSD

Front I/O: 1*VGA ，1*HDMI，1*DP

Serial Ports: 4 *COM

Com Port: Support RS232/RS422/RS485

Chassis: All Aluminum Chassis

Temp: -20℃～60℃

Ac Adaptor: DC12V4.0A

Highlight:

I5 6500T Industrial Mini PC

All Aluminum Chassis Industrial Mini PC

Basic Infomation

Place of Origin: China

Brand Name: MTHGH

Certification: CE、CCC、FCC Class A、ROHS

Model Number: IBOX-708

Payment & Shipping Terms

Packaging Details: Standard carton package : carton+ plastic bag+ foam+ honeycomb paperboard+ pack thread.

Delivery Time: 7-10 work days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 10000 Set

Gallery

IBOX-708 SSD Intel Core I5 6500T Industrial Mini PC All Aluminum Chassis -20℃~60℃ Temp

Product Description

IBOX-708B wide voltage expandable 6 serial ports 8USB with GPIO

Onboard Intel Celeron 3865U, 7th generation Core i5/i7;

Features:

◇ All aluminum alloy structure；Fanless design

◇ Onboard Intel Q170 chip；

◇ Support DDR4 1866/2133 32G memory；

◇ Support 1*MSATA slot,2*2.5” SATA；

◇ Optional No expand slot,2 expand slot,4 expand slot

◇ Support 6*COM(Two optional RS232/422/485)

◇ Support DC 9～36V ,Support positive and negative connector reverse protection；

◇ Applied OS:

Technical Parameters:

Specification
Model	IBOX-708
Color	Titanium gray (Color can be customized)
Material	High quality aluminum alloy+ sheet metal structure
Processor	Intel Core i3 6100T (Dual core four threads,3.2 GHz)
	Intel Core i5 6500T (Quad core four threads,2.5 GHz,Max turbo 3.1 GHz)
	Intel Core i7 6700T (Quad core eight threads,2.8 GHz,Max turbo 3.6 GHz)
Memory	Support 2* DDR4 1866/2133 SODIMM memory slot,Max 32GB
BIOS	AMI EFI BIOS
Display Chip	Integrated Intel HD Graphics 530
Display Port	1* VGA,1HDMI,1DP(Support synchronous/asynchronous three display)
Front I/O	8USB3.0,2 Intel 1000M LAN ,1Power Switch,1 Mic,2* Speak port,
	6* COM(COM1,2 Optional RS232/422/485),1* DC Power phoenix terminal
	1VGA ,1HDMI,1*DP
Rear I/O	Support 1*MINI PCIE slot(Support WIFI/3G/4G),Embedded SIM Slot
	Support 1*MINI PCIE slot(Support MSATA/3G/4G),Embedded SIM Slot
	Optional(Standard version doesn’t include these ports):16 bit GPIO port,4*USB2.0
Expansion Slot	1PCIE X16 slot + 1PCIE X4 slot + 2*PCI slot,Extension Cards :support 210 mm
	Optional expand slot:1PCIE X16 slot + 1PCIE X4 slot
Network	2Intel i211-AT,1Intel i219-LM 1000M LAN (Support Vpro skill)
Storage	Support 1MSATA ,22.5” SATA (Support RAID0/1)
Power Supply	DC 9～36V wide voltage Input,Support positive and negative connector reverse protection
Other function	Auto power on when there is electricity,Timing boot,Wake on LAN,PXE boot,Watchdog(0～255 level)(Standard version doesn’t set these function)
Work Temp	0℃ ～ +50℃(Commercial HDD),-20℃ ～ +60℃(Industry SSD),Surface air flow
Work Humidity	5% ～ 95% non-condensing
Certificates	CE, CCC, FCC Class A, ROHS
Size	210 * 240 * 173 mm【NO VESA Mount】
Weigh	5.2 kg【No VESA Mount】
Application	Industrial Automation, Medical, Logistics Transportation, Warehouse, Electronic Education etc.

Product picture details:

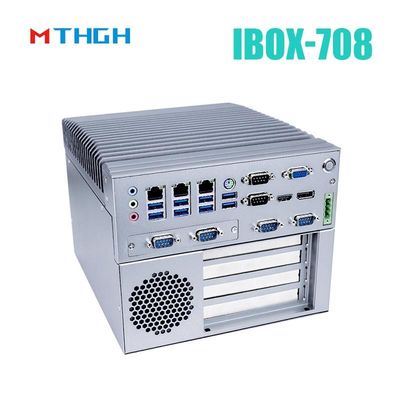

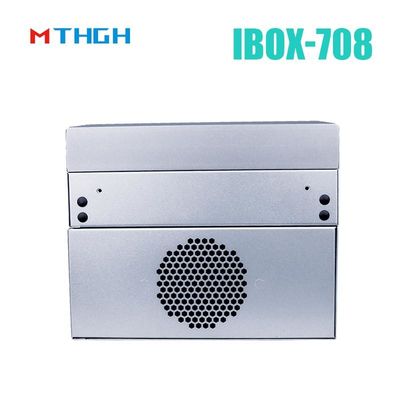

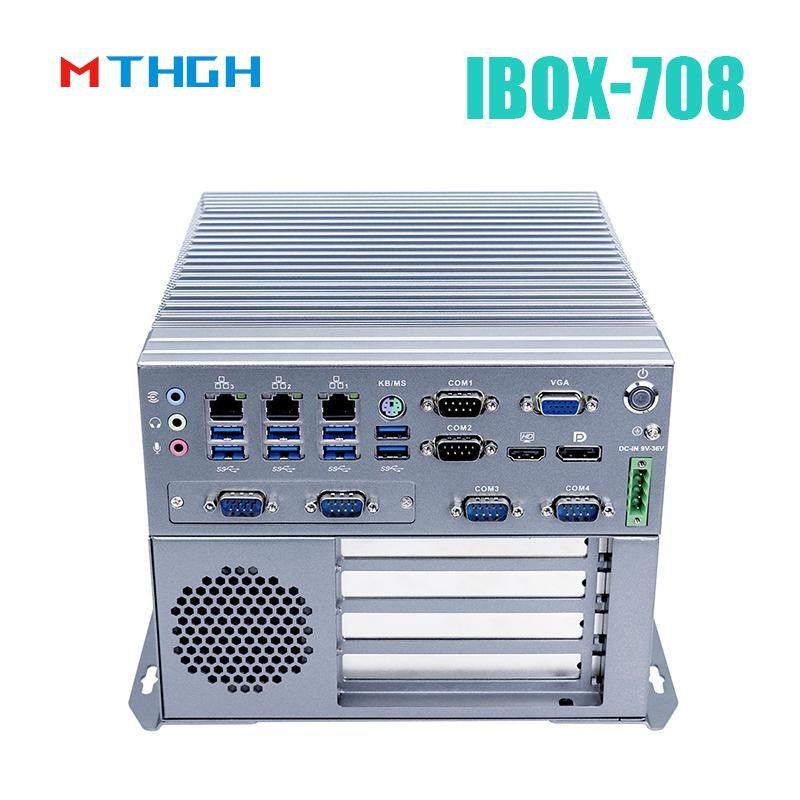

IBOX 708 Industrial PC

2/4 expand slot optional

rich interface & small size & internal structure

IBOX-708 SSD Intel Core I5 6500T Industrial Mini PC All Aluminum Chassis -20℃~60℃ Temp

various applications

Packing list
