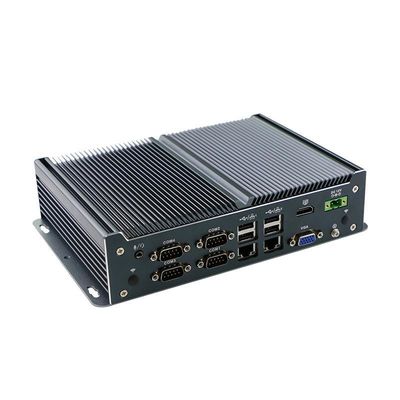

IBOX-1126 J1900 Industrial Fanless Mini PC With 4 USB 2.0 Ports

1 Set
MOQ
Negotiable
Price
IBOX-1126 J1900 Industrial Fanless Mini PC With 4 USB 2.0 Ports
Features Gallery Product Description Request A Quote
Features
Specifications
Model: IBOX-1126
Processor: J1900
Application: Industrial Automation, Medical, Logistics Transportation, Warehouse, Electronic Education Etc.
RAM: Support 1*DDR4 2400MHz SODIMM Memory Slot,Max. Support 8GB
USB: 3* USB2.0
Storage: 1*M.2 2280 Slot,1*2.5’’ HDD
Ports: USB 2.0, HDMI, VGA
Net Weight: 2.0kg
Dimension: 234 * 200 * 54 Mm
Input Voltage: DC 12V Input
Highlight:

Industrial Fanless Mini PC

,

J1900 Industrial Fanless Mini PC

Basic Infomation
Place of Origin: China
Brand Name: MTHGH
Certification: CE、CCC、FCC Class A、ROHS
Model Number: IBOX-1126
Payment & Shipping Terms
Packaging Details: Standard carton package : carton+ plastic bag+ foam+ honeycomb paperboard+ pack thread.
Delivery Time: 5-10 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000 Set
Product Description

Product Description:

With 4 USB2.0 ports, this industrial mini PC provides sufficient connectivity for various peripherals. It also supports 1 DDR4 2400MHz SODIMM memory slot, with a maximum capacity of 8GB, which ensures smooth and efficient performance.

This mini PC is lightweight, with a net weight of only 2.0kg, making it easy to install and move around in industrial settings. It is also designed with an industrial PC power supply that ensures stable and reliable performance.

In summary, the Industrial Mini PC is a compact and powerful solution for industrial computing needs. Its quad-core processor, USB connectivity, and DDR4 memory slot make it an excellent choice for a wide range of industrial applications. Additionally, its lightweight design and industrial PC power supply make it a reliable and easy-to-use solution that can handle the most demanding industrial environments.



Features:

  • Product Name: Industrial Mini PC
  • Certificates: CE,CCC,FCC Class A,ROHS
  • Input Voltage: DC 12V Input
  • Application: Industrial Automation, Medical, Logistics Transportation, Warehouse, Electronic Education Etc.
  • USB: 4* USB2.0
  • RAM: Support 1*DDR4 2400MHz SODIMM Memory Slot,Max. Support 8GB

This All In One Industrial PC has an Industrial PC Power Supply and is an Industrial Fanless Mini PC.



Technical Parameters:

Specification
Model IBOX-1126
Color Titanium gray(Any color can be)
Material Pure Aluminum
Processor Support Intel Celeron J1900(Quad core,1.99Ghz)
RAM Support 1*DDR3L 1333/1600 SODIMM RAM,Max 8 GB
BIOS AMI UEFI BIOS
Display Chip Support Intel HD Graphics
Display Port 1*VGA,1*HDMI(Support synchronous and asynchronous dual display)
Front I/O Support 3*USB2.0,1*USB3.0,2*COMs,1*GPIO(4*Input 4*Output),1*switch bottom
Rear I/O Support 4*COMs(COM1,2 RS232/485 Optional),4*USB2.0,2*LAN
  Support 1*HDMI.1*VGA,1*2PINS phoenix power connector,1*audio
Expansion Slot Support 1*MINI PCIE slot(WIFI/3G/4G,choose one of them),SIM card slot
  Support 1*MINI PCIE slot(WIFI/3G/4G,choose one of them),SIM card slot
LAN 2*Intel i211-AT 10/100/1000M Ethernet LAN
Storage Support 1*MSATA,1*2.5inches HDD/SSD
Power Supply Support DC 12V
Other function Auto power on when there is electricity,Timing boot,Wake on LAN,PXE boot,Watchdog(0~255 level)
Work Temp 0℃ ~ +50℃ ( HDD),-20℃ ~ +60℃ ( SSD),Surface air flow
Work Humidity 5% ~ 95% non-condensing
Certification CE, CCC, FCC Class A, ROHS
size 234 * 155 * 53.5mm
weight 1.8kg
Application Industrial automation, medical, logistics and transportation, warehousing, electronic education and other fields

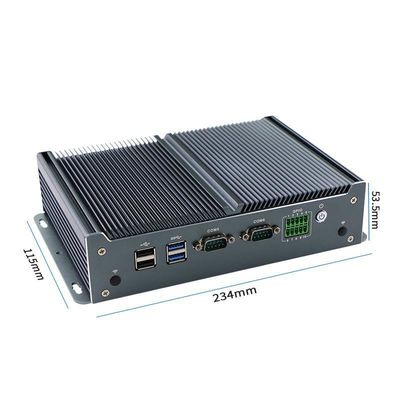

IBOX-1126 Drawing:

IBOX-1126 J1900 Industrial Fanless Mini PC With 4 USB 2.0 Ports 0





Accessory
Name Quantity Specification
Power Adapter 1 12V 5A
Power Cord 1

Any Plug Optional

(China, US, EU, UK etc.)

Order information
Configuration 1 IBOX-1126 Intel celeron J1900 Standard




Applications:

The MTHGH IBOX-1126 is equipped with a quad-core processor core that provides reliable performance and excellent processing speed. This mini PC is also CE, CCC, FCC Class A, and ROHS certified, ensuring its compliance with international safety and environmental standards.

This industrial mini PC is perfect for a wide range of industrial applications, such as industrial touch panel PC, industrial automation, and control systems. It is also ideal for use in harsh environments, including outdoor and indoor industrial settings.

The MTHGH IBOX-1126 is also equipped with 2*Intel I211-AT 10/100/1000M Ethernet LAN that ensures stable and reliable network connectivity, making it a perfect fit for industrial automation and control systems. Its compact design and robust construction make it suitable for use in various scenarios, including factories, warehouses, and other industrial environments.

Overall, the MTHGH IBOX-1126 is an all-in-one industrial mini PC that provides excellent performance, reliability, and versatility. It is perfect for industrial touch panel PC, industrial automation, and control systems, making it a must-have device for any industrial setting.

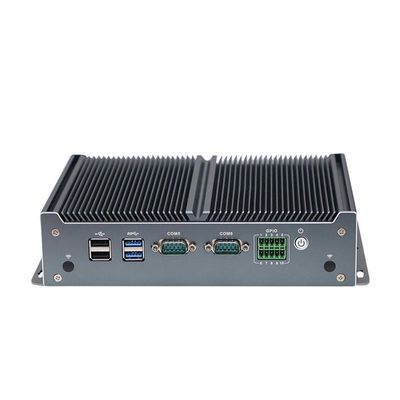

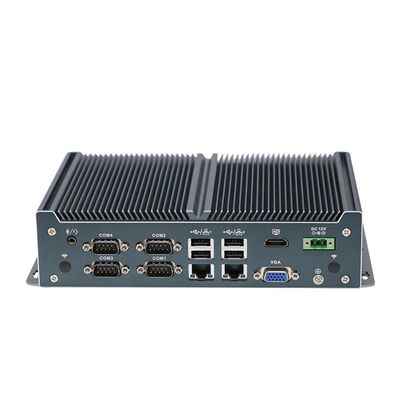

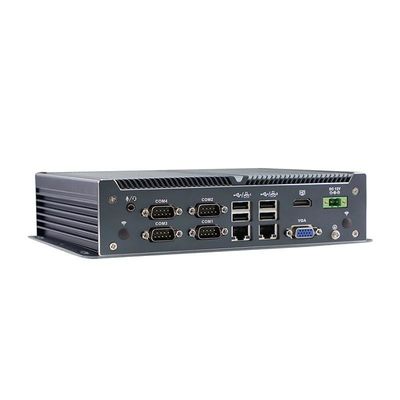

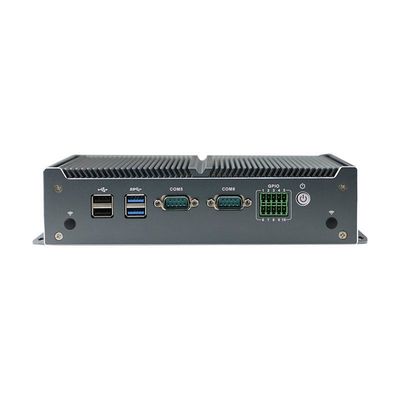

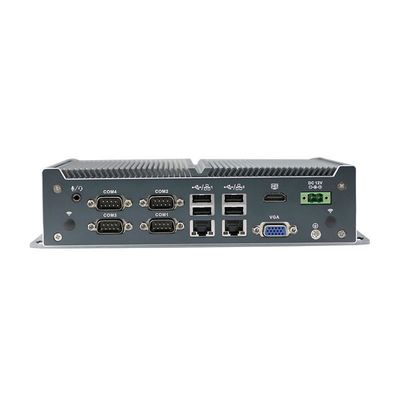

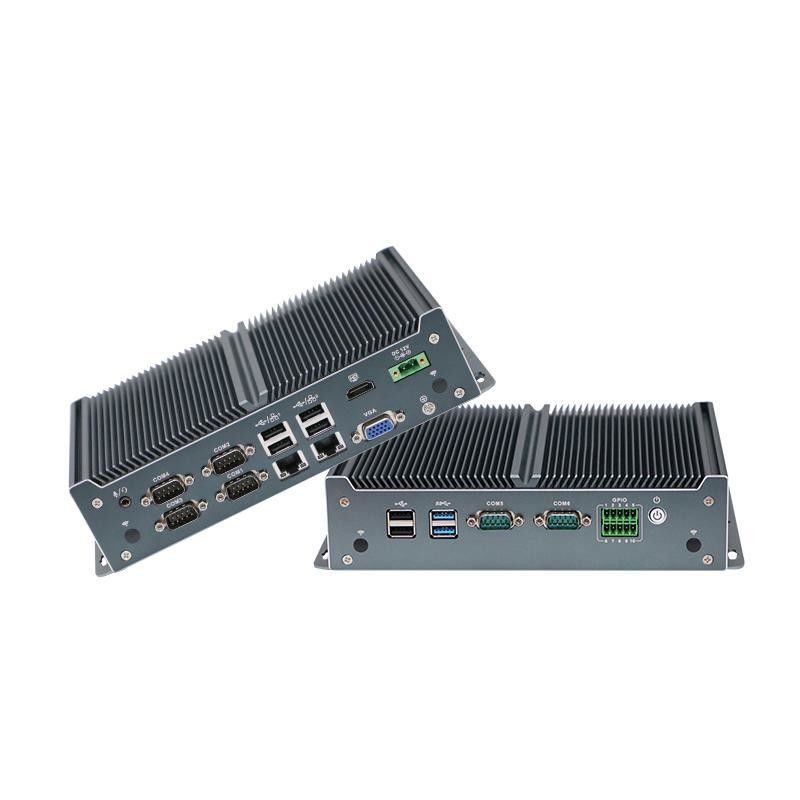

IBOX-1126 J1900 Industrial Fanless Mini PC With 4 USB 2.0 Ports 1IBOX-1126 J1900 Industrial Fanless Mini PC With 4 USB 2.0 Ports 2IBOX-1126 J1900 Industrial Fanless Mini PC With 4 USB 2.0 Ports 3IBOX-1126 J1900 Industrial Fanless Mini PC With 4 USB 2.0 Ports 4IBOX-1126 J1900 Industrial Fanless Mini PC With 4 USB 2.0 Ports 5IBOX-1126 J1900 Industrial Fanless Mini PC With 4 USB 2.0 Ports 6IBOX-1126 J1900 Industrial Fanless Mini PC With 4 USB 2.0 Ports 7IBOX-1126 J1900 Industrial Fanless Mini PC With 4 USB 2.0 Ports 8IBOX-1126 J1900 Industrial Fanless Mini PC With 4 USB 2.0 Ports 9IBOX-1126 J1900 Industrial Fanless Mini PC With 4 USB 2.0 Ports 10IBOX-1126 J1900 Industrial Fanless Mini PC With 4 USB 2.0 Ports 11IBOX-1126 J1900 Industrial Fanless Mini PC With 4 USB 2.0 Ports 12
