86 inch interactive whiteboard 4:3 without hotkeys
Ⅰ. Description Of IR Digital Smart Interactive Whiteboard
A Smart Interactive Whiteboard, also known as interactive board or smart board, is a large interactive display board in the form factor of a whiteboard. It can either be a standalone touchscreen computer used independently to perform tasks and operations, or a connectable apparatus used as a touchpad to control computers from a projector. They are used in a variety of settings, including classrooms at all levels of education, in corporate board rooms and work groups, in training rooms for professional sports coaching, in broadcasting studios, and others.
II. Connecting The Smart Interactive Whiteboard
Connect the Smart Interactive Whitebaord with laptop/PC and projector:
1. Insert one end of the provided USB cable into the USB port of the laptop.
2. Insert the other end into the USB port of the Whiteboard.
3. Insert one end of HDMI (or VGA) cable into the laptop/PC's HDMI (or VGA) port.
4. Insert the other end into the projector's HDMI (or VGA) port. Make sure
the projector is set to use its HDMI( or VGA) input.

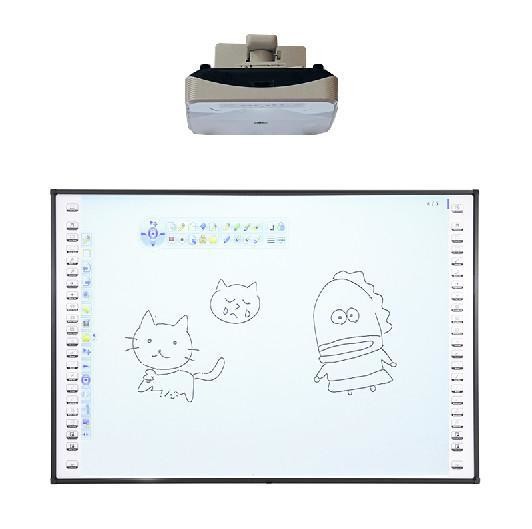

When finished, the installation should look similar to the figure bellow:
Specifications:
| Hardware Special Features |
Gesture recognition |
| Technology |
Infrared |
| Touch Point |
10 touch |
| Cursor Speed |
180 dot/s |
| Display ratio16 |
4:3 |
| Resolution |
32768 x 32768 |
| Positioning Accuracy |
<2mm |
| Connecting Port |
USB 2.0 USB 1.1 USB 3.0 |
| View Angle |
Horizontal 170°, vertical 160° |
| Operating System |
Windows 2000, Windows XP, Windows Vista, Windows 7, Windows 8.1,Windows 10, Linux, Mac, Android |
| Power Supply |
USB power supply DC 4.7V- 5.2V <1W ( <=300mA at 5V) |
| Working Condition |
Indoor or Outdoor |
| Storage |
Temperature: -30°C~60°C Humidity: 0%~95% |
| Operation |
Temperature: -10°C~45°C Humidity: 10%~90% |
| Installation |
Wall mounted, cabinets, mobile stand (optional) |
Physical specifications:
| Model |
MTHGH - 86B20 |
| Overall Size (mm) |
2101x 1680 |
| Overall Diagonal (inch) |
86.5 |
| Aspect Ratio |
4:3 |
| Board Weight (kg) |
15 |
| Gross Weight (kg) |
23 |
| Product Dimension (mm) |
2101x 1680x 30.3mm |
| Packed Size (mm) |
2250 x 1720 x 90 mm |

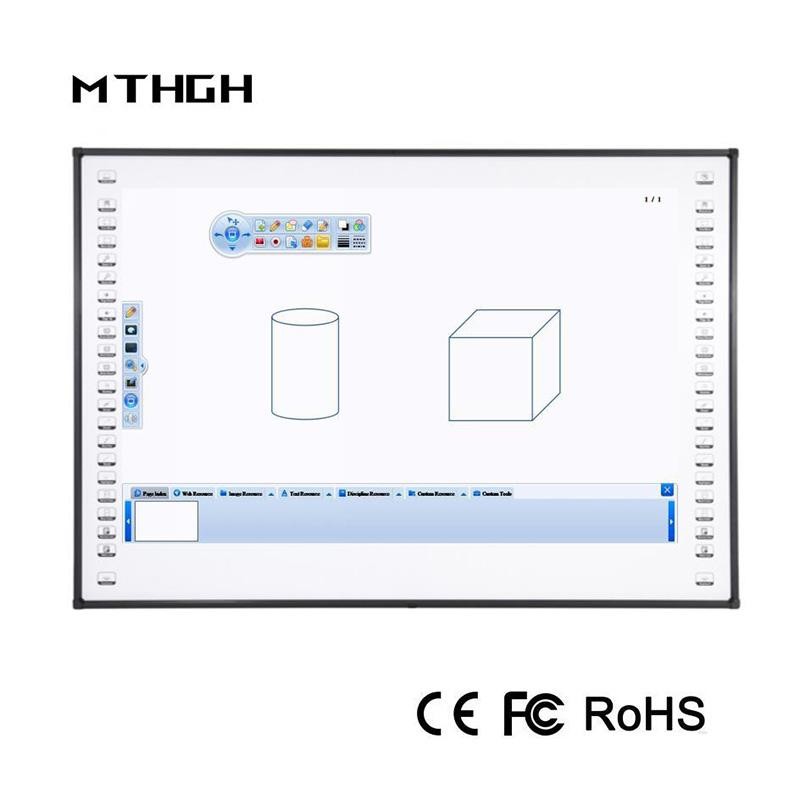

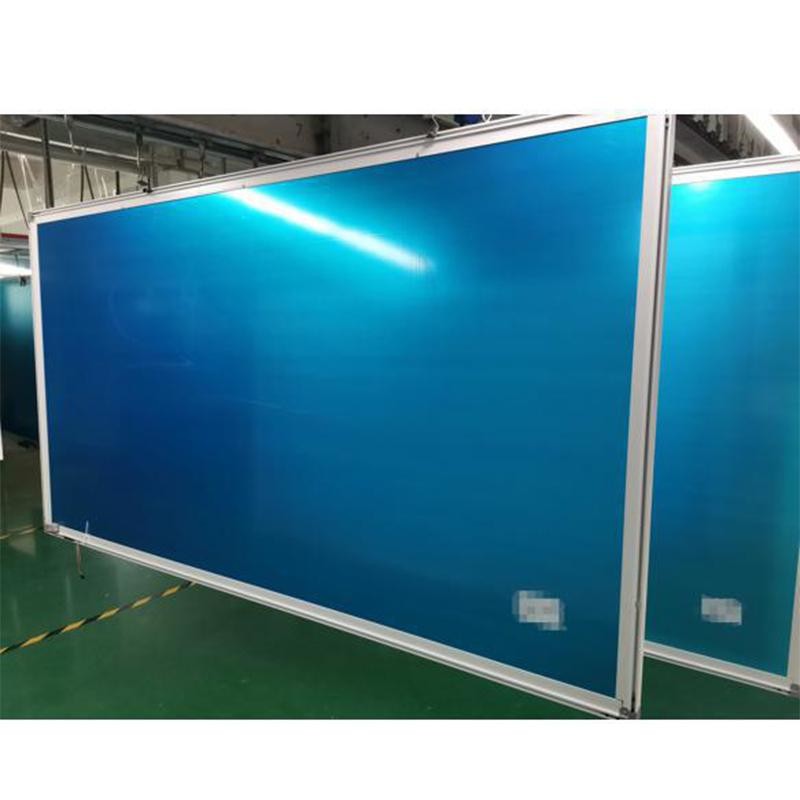

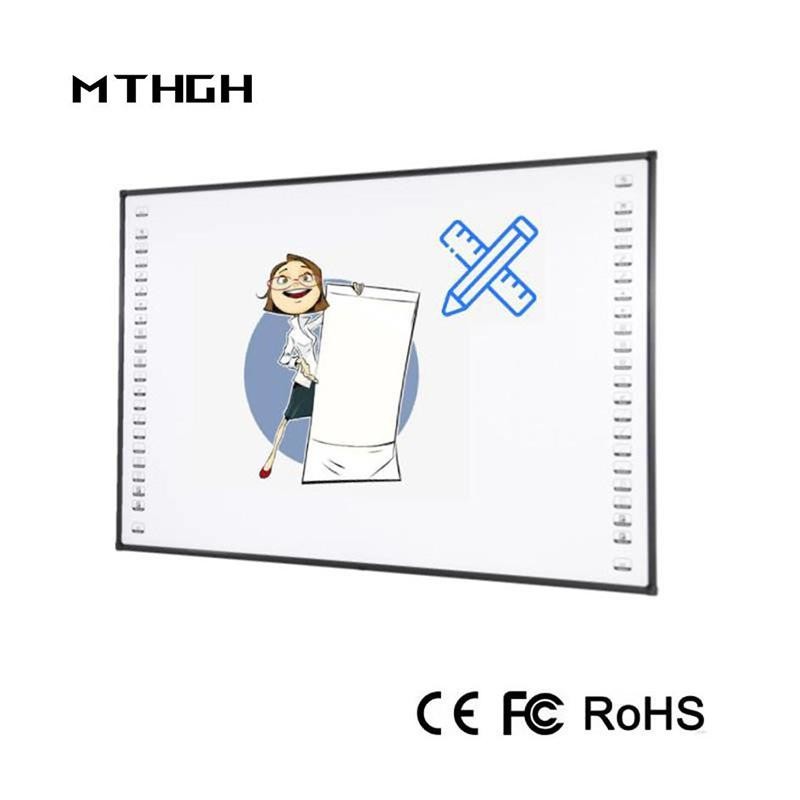

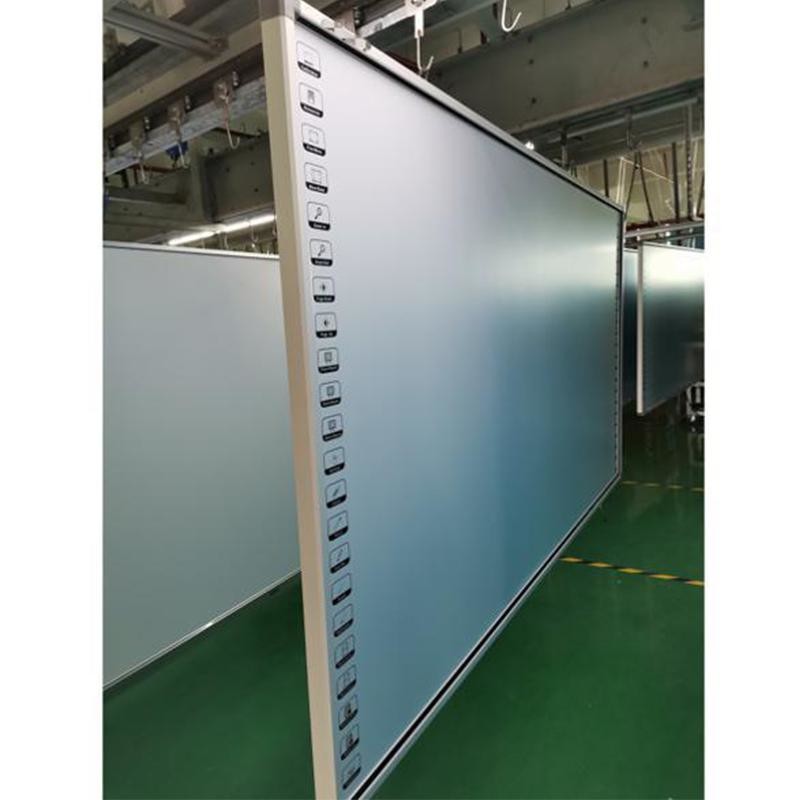

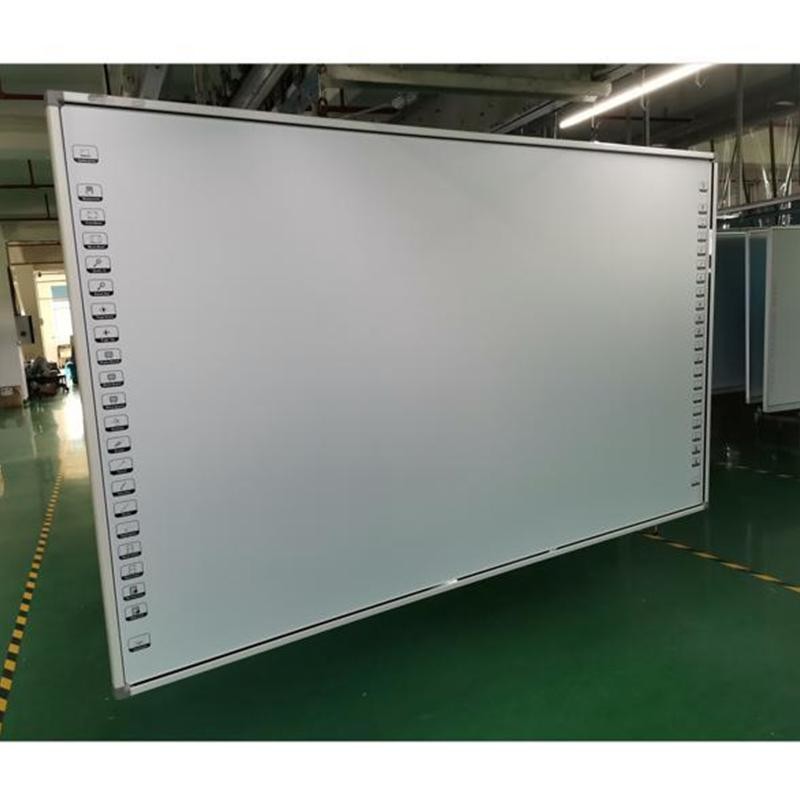

Product Photos
