86 Inch Smart Infrared Interactive Panel USB2.0/3.0, 32767x32767 Interactive Whiteboard Display
Hightlights:
1. Multi finger touch upto 10 points, with fingers or pen writing,optional size 78" to 102"
2. Powerful teaching software, workable with annotation, files sharing,presentation, group setting,etc.
3.Applications: school,office,lab,entertainment places,etc.
4.Finger gesture recognizations: write,move, erase,etc.
5.Professional technical supports if any question or need
6. OEM service: logo,package,software,etc.
7. Easy operation and fast connection by VGA/HDMI/USB cable
Technical specifications:
| Hardware Special Features |
Gesture recognition |
| Touch Technology |
Infrared |
| Touch Point |
10 touch |
| Resolution: |
32767 x 32767 |
| Cursor Speed |
180 dot /s |
| Effect Touch Object Size |
>8mm |
| Touch Method |
Finger or Pen |
| Positioning Accuracy |
<2mm |
| Connecting Port |
USB 2.0 |
| Operating System |
Windows 2000, Windows XP, Windows Vista, Windows 7, Windows 8.1,Windows 10, Linux, Mac, Android |
| Power Supply |
USB power supply DC 4.6V- 5.0V <1W ( 100mA at 5V) |
| Working Condition |
Indoor or Outdoor |
| Storage |
Temperature: -30°C~60°C Humidity: 0%~95% |
| Operation |
Temperature: -10°C~45°C Humidity: 10%~90% |
| Installation |
Wall mounted, cabinets, mobile stand (optional) |
Physical data:
| Model |
M-83B20 |
M-86B20 |
M-96B20 |
| Overall Size(mm) |
1747x1234 |
2010 x1100 |
2151 x1190 |
| Projection Size(mm) |
1569x1177 |
1842x1036 |
1992x1121 |
| Overall Diagonal |
83” |
86” |
96” |
| Aspect Ratio |
4:3 |
4:3 |
16:9 |
| Board Weight(kg) |
18 |
20 |
25 |
| Gross Weight (kg) |
25 |
28 |
32 |
| Product Dimension(mm) |
1747x1234 x 37.5 |
2010 x1100 x37.5 |
2151 x1190 x37.5 |
| Packed Size(mm) |
1840x1325 x80 |
2100 x1190 x80 |
2240 x1280 x80 |

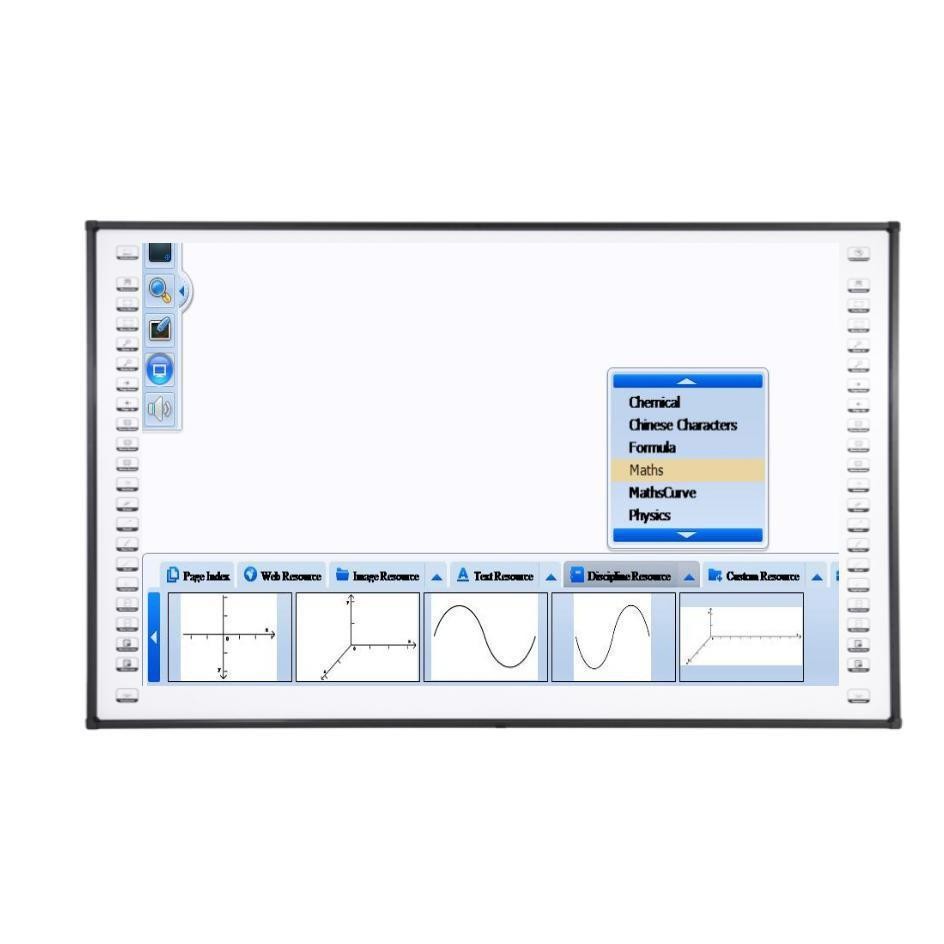

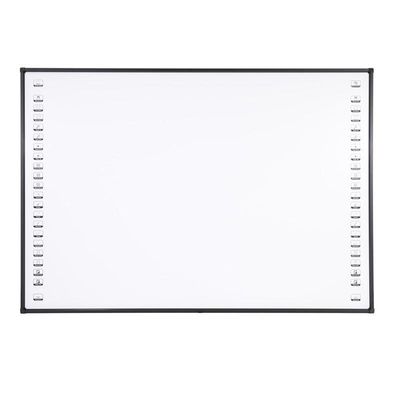

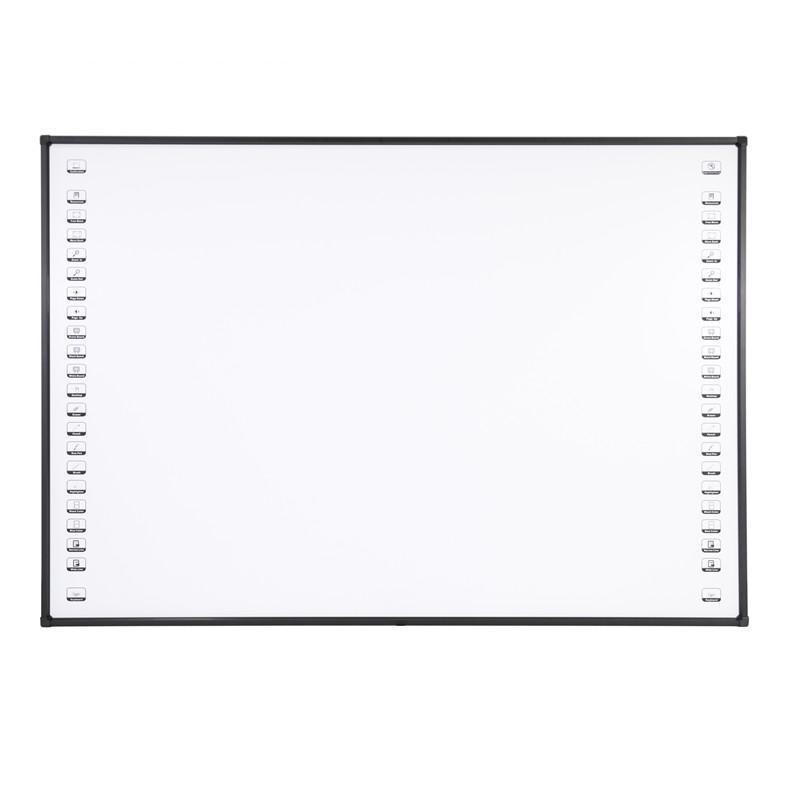

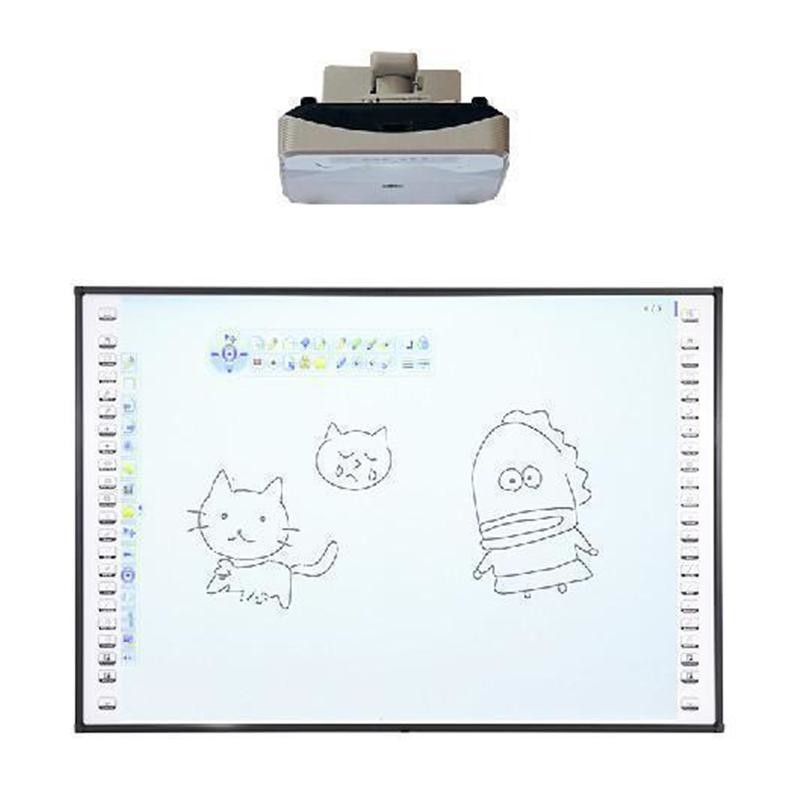

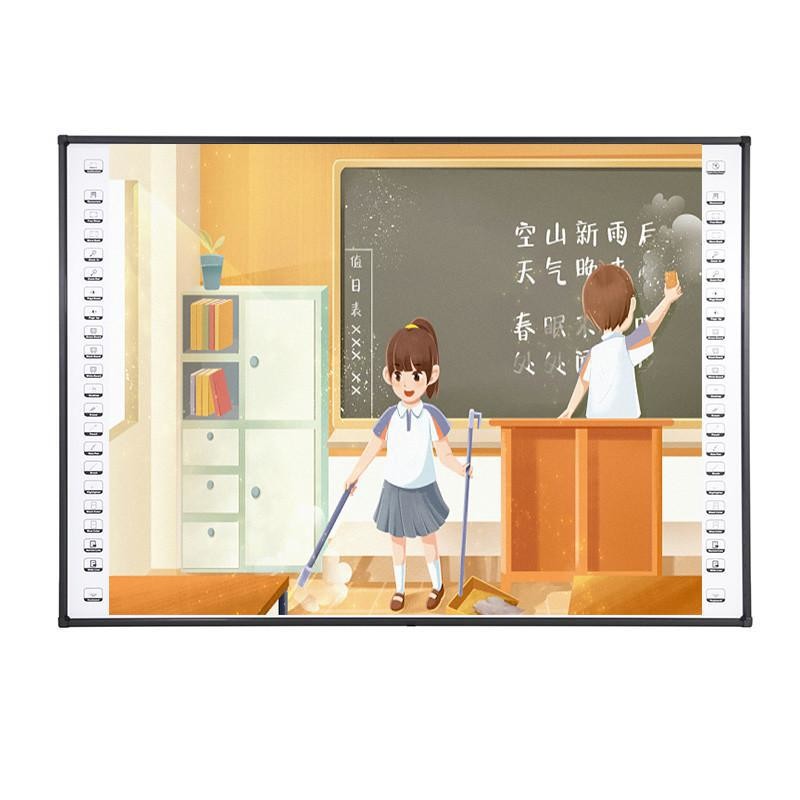

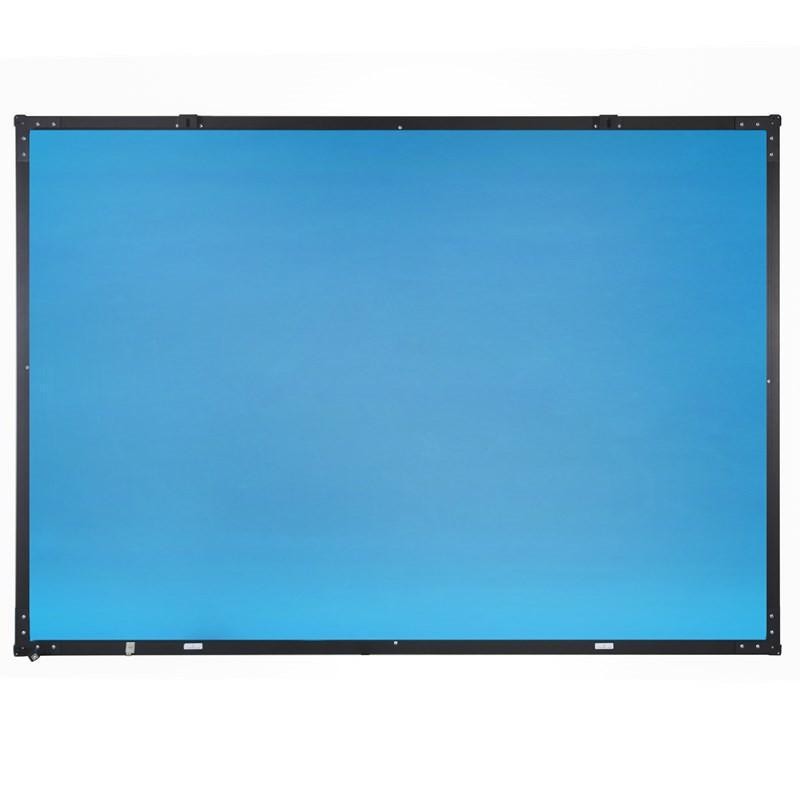

Figure Demo:
