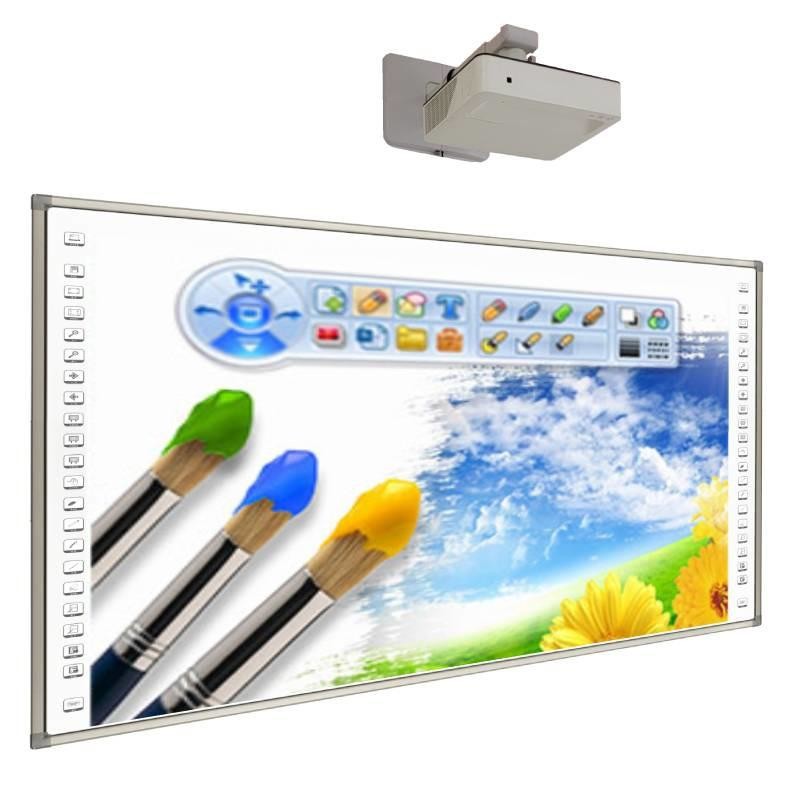

83" Smart Class Interactive Whiteboard IR 10 Finger Touch Points For Smart Classroom
Ⅰ. Description Of Smart Class Interactive Whiteboard
An Smart Class Interactive Whiteboard, also known as interactive board or smart board, is a large interactive display board in the form factor of a whiteboard. It can either be a standalone touchscreen computer used independently to perform tasks and operations, or a connectable apparatus used as a touchpad to control computers from a projector. They are used in a variety of settings, including classrooms at all levels of education, in corporate board rooms and work groups, in training rooms for professional sports coaching, in broadcasting studios, and others.
II. Connecting The SMART Class Interactive Whiteboard
Connect the smart class Interactive Whitebaord with laptop/PC and projector:
1. Insert one end of the provided USB cable into the USB port of the laptop.
2. Insert the other end into the USB port of the Whiteboard.
3. Insert one end of HDMI (or VGA) cable into the laptop/PC's HDMI (or VGA) port.
4. Insert the other end into the projector's HDMI (or VGA) port. Make sure
the projector is set to use its HDMI( or VGA) input.

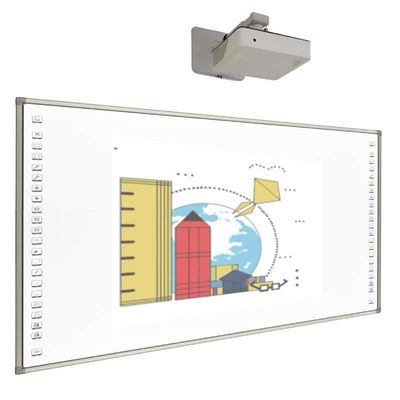

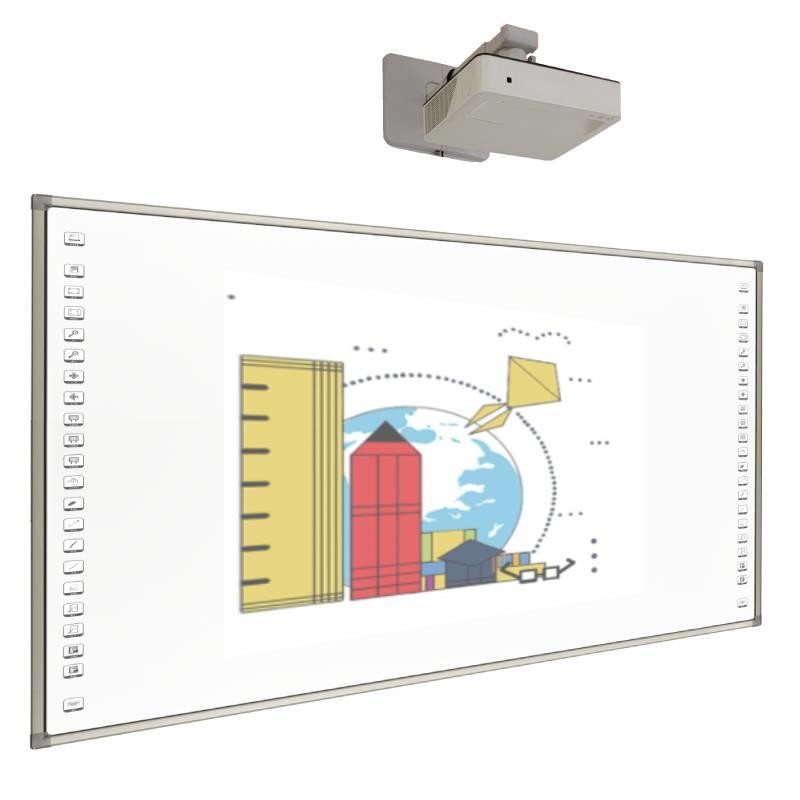

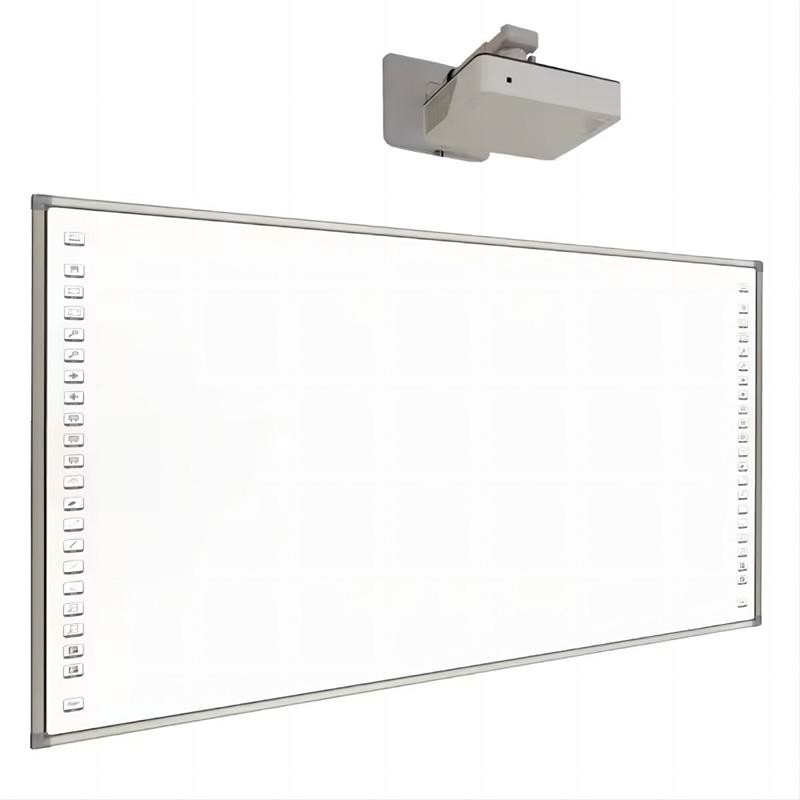

When finished, the installation should look similar to the figure bellow:
III. Our Advantage
1. We are factories with more than 10 years' exprience on making OEM/ODM digital infrared interactive whiteboard, optical interactive whitegboard, our interactive board has been sold to more than 80 countries, we have own developed interactive whiteboard software Drawview, support multi-languages, easy use and have abundant teaching tools. Prdouction capability for IWB is more than 10,000 pieces per month.
2. 10 points IR touch ( 20/40 points touch option): We used own developed touch sensor for the IWB, it dopt super sensitive touch sensor, increase the touch accuracy, and it can stand more than 35 million time secure touch without any uncontrolled space. Touch easily and control perfectly.

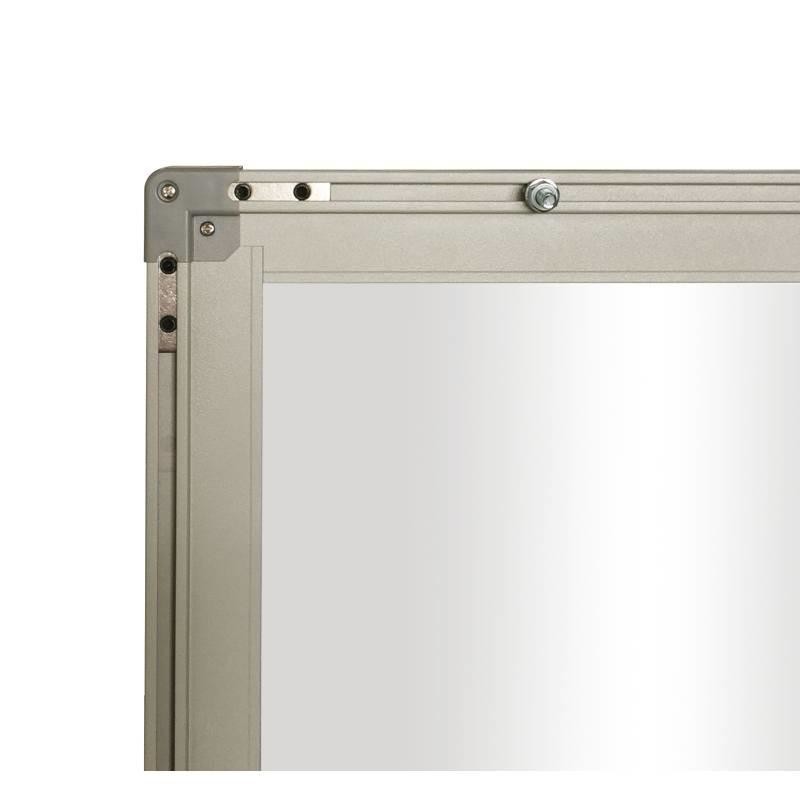

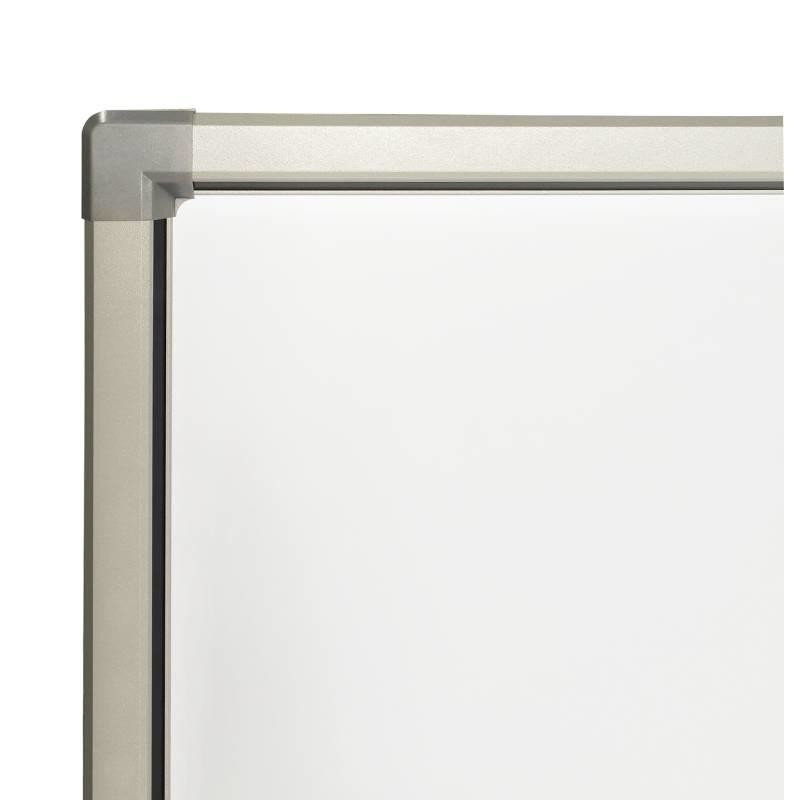

3. Board panel: Nanometer high polymer/Ceramic (Porcelain) surface+ XPS/Aluminum honeycomb middle
4. Intelligent writing & Touch control: the writing function interface can realize the functions of writing, magnifying, shrinking, erasing, dragging, and the like.
5. Support gesture recognition in our interactive board software
6. Main IWB size include: 83" 86" 96" 106" 120" 130" 150" and other sizes, max size up to near 150 inch.
IV. Technicial Parameters
| Interactive Board Speicification |
Parameters |
| Touch Technology |
Infrared |
| Touch Point |
10/20/32/40 touch Points |
| Resolution: |
32767 x 32767 |
| Cursor Speed |
180 dot /s |
| Effect Touch Object Size |
>8mm |
| Touch Method |
Finger or Pen |
| Positioning Accuracy |
<2mm |
| Connecting Port |
USB 2.0/USB 3.0 |
| Operating System |
Windows 2000, Windows XP, Windows Vista, Windows 7, Windows 8.1,Windows 10, Linux, Mac, Android |
| Power Supply |
USB power supply DC 4.6V- 5.0V <1W ( 100mA at 5V) |
| Working Condition |
Indoor or Outdoor |
| Storage |
Temperature: -30°C~60°C Humidity: 0%~95% |
| Operation |
Temperature: -10°C~45°C Humidity: 10%~90% |
| Installation |
Wall mounted, cabinets, mobile stand (optional) |
