86 Inch Flexible LCD Interconnected Smart Digital Blackboard for Teaching
86-inch smart digital blackboard with 4K resolution, 20-point touch, and Android/Win systems. Features include writing storage, optional camera/mic, and connectivity via WiFi/Bluetooth. Customizable specs (RAM/processor) and OEM support available.
Interconnected Smart Digital Blackboard
,86 Inch Smart Digital Blackboard
,Flexible LCD Smart Digital Blackboard

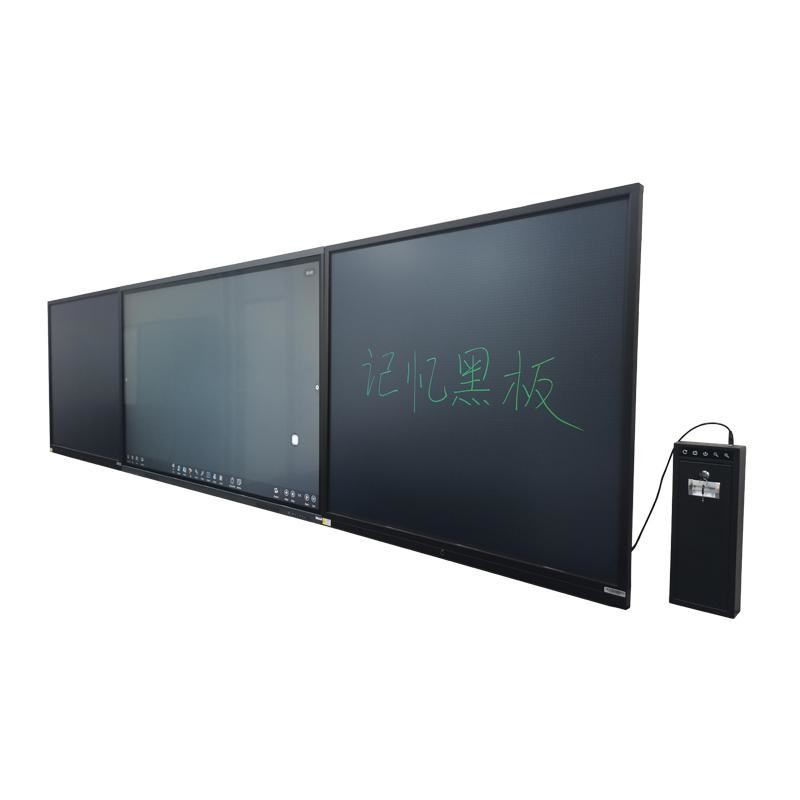

The 86-inch LCD interconnected smart blackboard (Model XYC86) represents the next generation of intelligent teaching solutions. Spanning an overall physical chassis length of 4200mm, this high-quality smart teaching blackboard combines traditional physical chalk writing with advanced digital interaction, 4K multimedia courseware playback, and real-time cloud teaching capabilities.

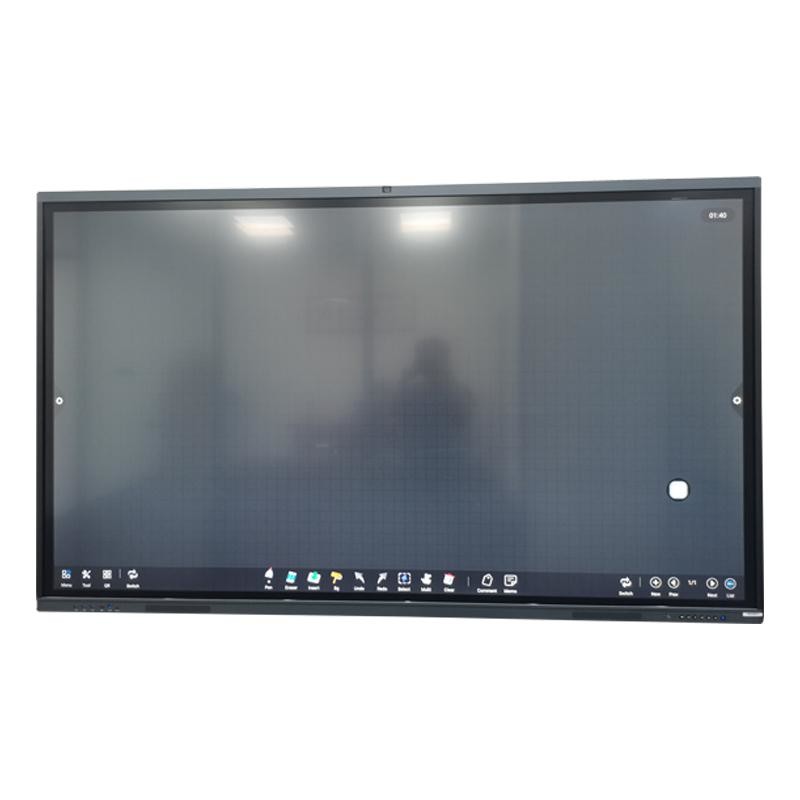

Featuring an active 85.6-inch DLED panel (1895.04 x 1065.96 mm) with 3840x2160 resolution, 350cd/m² brightness, and a wide 178° viewing angle, presentation slides and written equations remain easy to read from every desk in the auditorium. The 10bit display panel outputs 10.7 Billion colors for lifelike educational chart rendering.

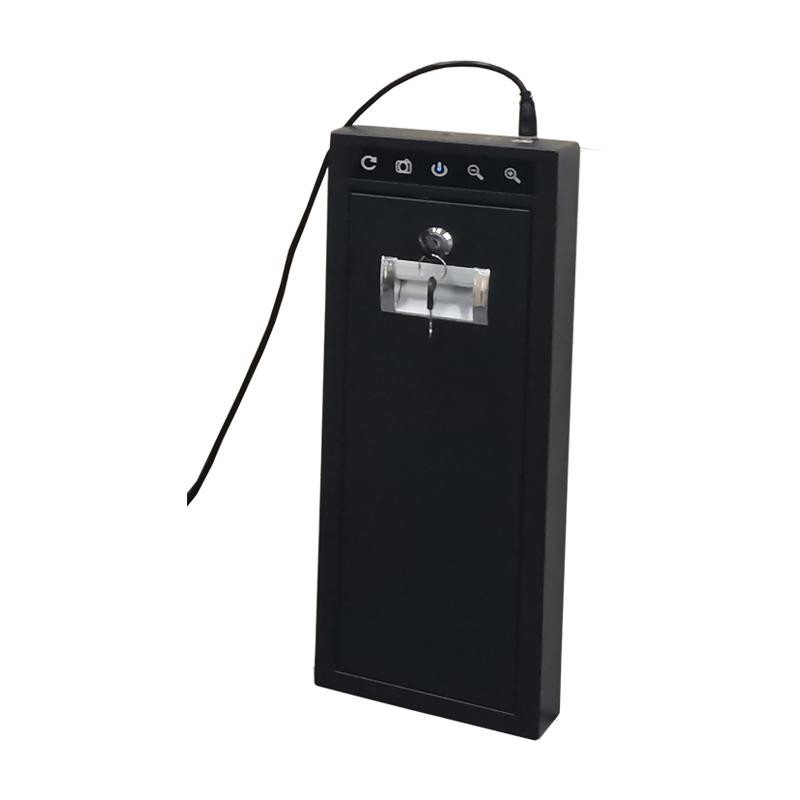

Captures and digitizes physical chalk writing on side wings, enabling instant file saving and sharing via hotkeys.
20-point multi-touch with <15ms response time, <2mm accuracy, and cursor speeds exceeding 240 dot/s.
Compatible with built-in 13MP camera and 8-array omnidirectional noise-canceling microphone for hybrid distance learning.
Powered by DDR3 4G RAM and 32G EMMC ROM supporting dual Windows and Android software environments.
This connected blackboard solves the critical limitation of traditional blackboards where physical writing cannot be saved. Designed to match teachers' natural writing habits, it features intelligent chalk writing storage that can be quickly activated on both sides of the blackboard with a single click.
The system supports one-click sharing through front shortcut keys (featuring 11 physical buttons: POWER, SOURCE, MENU, VOL+, VOL-, CH+, CH-, PC, ES, ENTER, HOME). The main screen utilizes high-precision capacitive technology to enable multi-touch functionality for students and teachers simultaneously.
| Specification Attribute | Verified Parameter Details |
|---|---|
| Product Model | XYC86 Connected Memory Blackboard |
| Display Panel Type & Backlight | DLED (Direct-LED Backlight) |
| Screen Resolution & Ratio | 3840 x 2160 P (4K UHD) / 16:9 Widescreen |
| Panel Luminance Brightness | 350 cd/m² High Luminance Output |
| Dynamic Contrast Ratio | 1200:1 Dynamic Contrast Ratio |
| Active Display Area | 1895.04 mm (H) x 1065.96 mm (V) (85.6 Inch Display) |
| Viewing Angle & Color Depth | 178° Horizontal/Vertical; 10bit (10.7 Billion Colors) |
| System Memory & Storage | 4GB DDR3 System RAM / 32GB EMMC ROM Storage |
| Operating System Support | Dual System Architecture (Windows & Android Engine) |
| Touch Technology & Points | Capacitive (PCAP Touch) / 20 Simultaneous Touch Points |
| Touch Response & Speed | <15ms Response Time; Continuous Response <8ms; Cursor Speed >240 dot/s |
| Touch Object & Accuracy | Finger or PCAP Stylus Pen / Accuracy <2mm / >60,000,000 Touch Lifespan |
| Rear I/O Connectivity Array | HDMI 2.0 *2, VGA *1, Audio *1, USB 3.0 *1, USB 2.0 *1, RJ45 *1, SD CARD *1, AV-IN *1, YPbPr *1, RS232 *1, USB Touch Port (B) *1, Wi-Fi *1, DP *1, AV-out *1, Headphone *1, SPDIF *1, HDMI Output *1 |
| Front I/O Connectivity Array | 1* HDMI, 1* Touch USB, 3* USB, 1* Type-C Interface |
| Front Physical Control Keys | 11 Keys (POWER, SOURCE, MENU, VOL+, VOL-, CH+, CH-, PC, ES, ENTER, HOME) |
| Rating Power & Voltage | AC 100-240V ~ 50/60Hz, Rated Current: 3.5A |
| Physical Dimensions | Chassis Unit: 4200 x 1306.5 x 127.6 mm |
| Packaging Dimensions | Crate 1: 2172 x 280 x 1457 mm; Crate 2: 1250 x 235 x 1427 mm |
| Included Accessories | Touch Pen *1, Touch USB Cable (1.5M) *1, Power Cable (1.8M) *1, Remote Controller *1 |

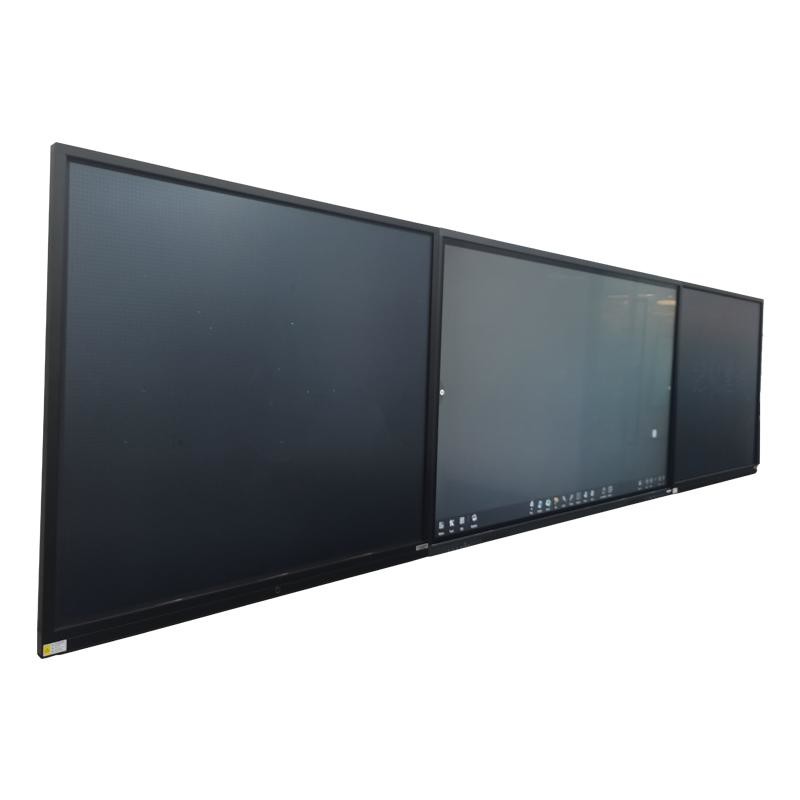

The following are authentic site pictures capturing the 86-inch connected blackboard installed across modern educational environments:
Xingyicheng Technology is a leading manufacturer for interactive touch products whose portfolio covers interactive whiteboards, interactive flat panels, touch displays, commercial advertising displays, conference touch displays, and specialized projectors for educational and enterprise markets.
A. Do you support OEM/ODM customization?
Customization Workflow:
1. Provide your specific project requirements.
2. Our R&D design engineers draw the design draft.
3. You review and confirm the technical draft.
4. Mass factory production commences.
B. What main product categories do you manufacture?
C. What are your factory manufacturing advantages?
• Standard 12-month warranty with optional 3-year or extended coverage packages available.
• Premium glass panels sourced directly from BOE and LG OEM factories (100% A-grade zero-defect 4K UHD anti-glare screen).
• 100% new component testing resulting in a low repair rate below 1%.
• Minimum order quantity (MOQ) = 1 unit, with tier-based volume discounts for bulk orders.
D. What trade terms and shipping methods do you offer?
• Payment Methods: Alipay, L/C, T/T.
• Shipping Lead Time: Approximately 15 working days for bulk orders and sample evaluations.
• Packaging: Reinforced neutral carton or large-size heavy-duty wooden crates.
• Shipping Modes: Sea freight, air freight, and express courier delivery.
