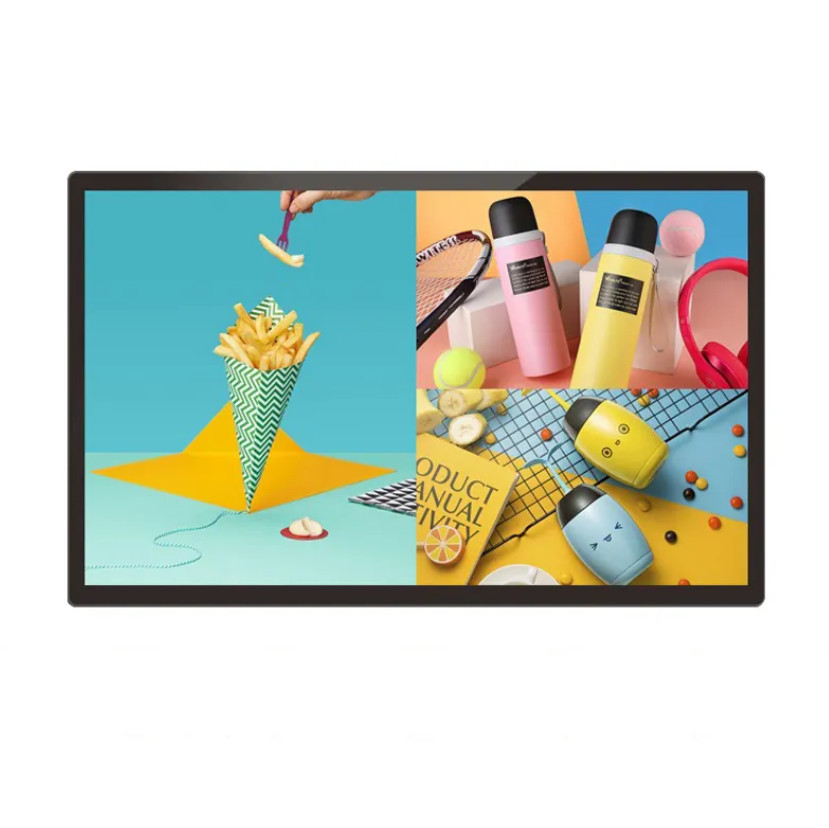

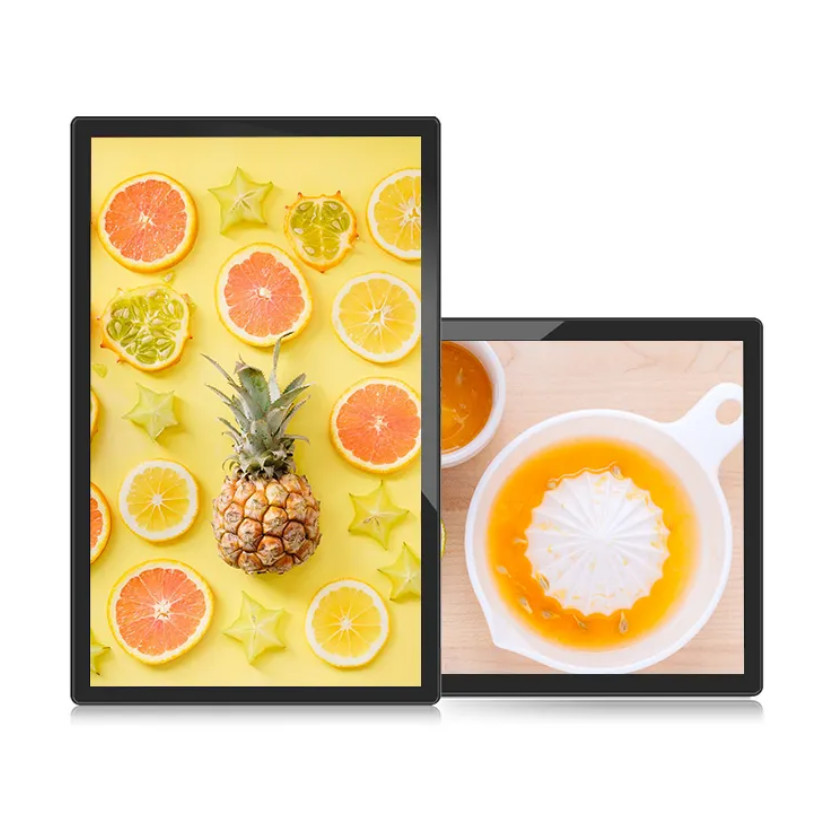

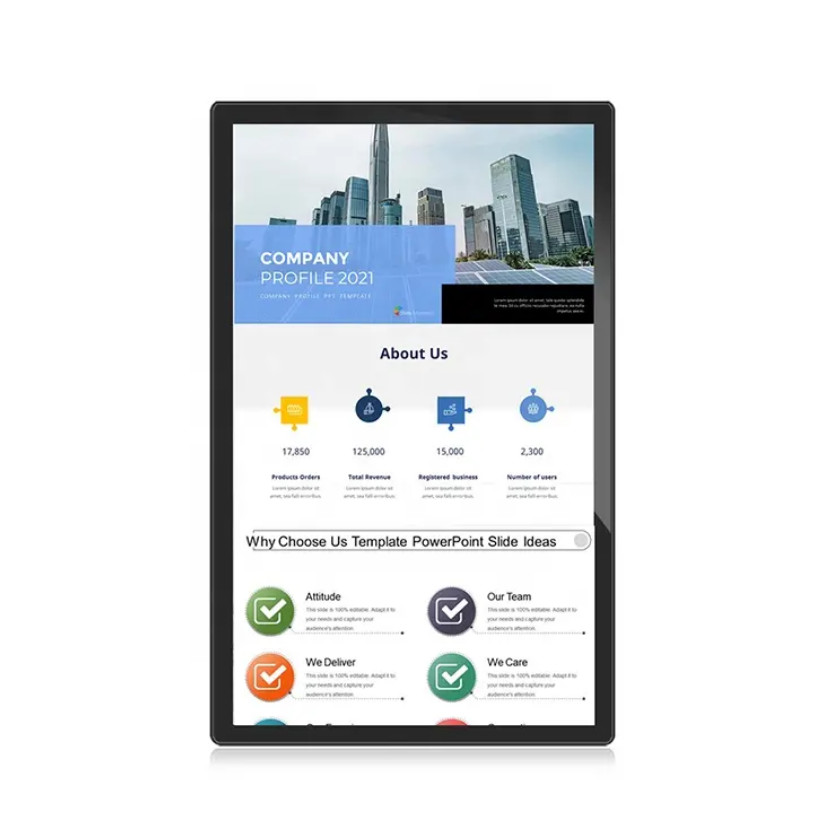

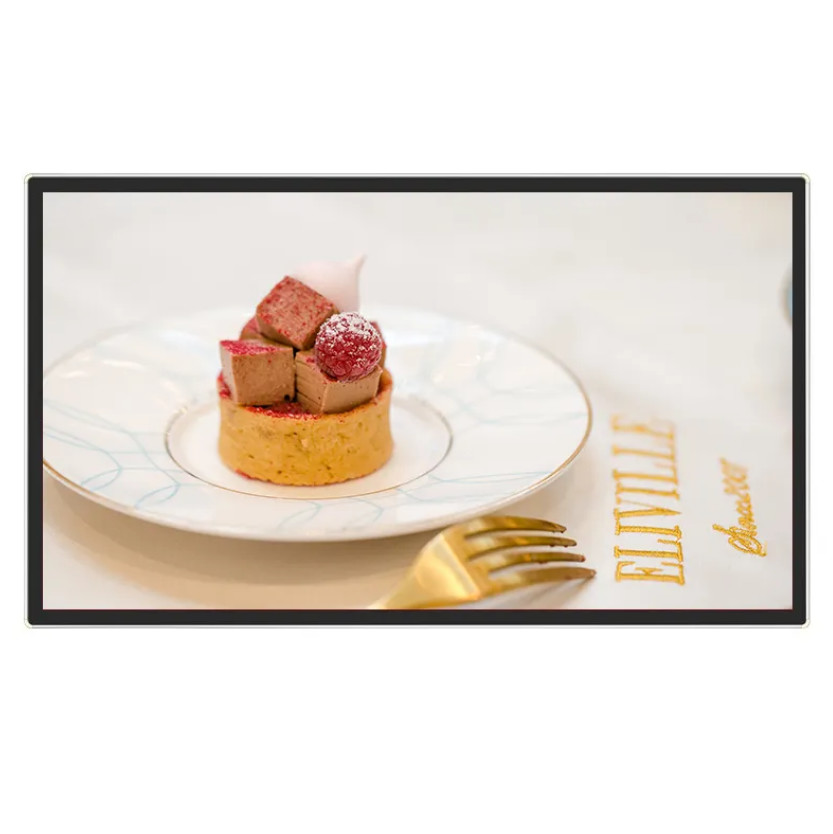

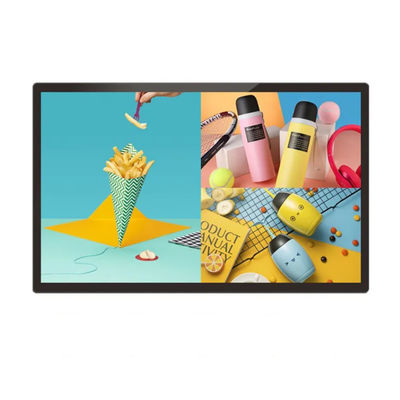

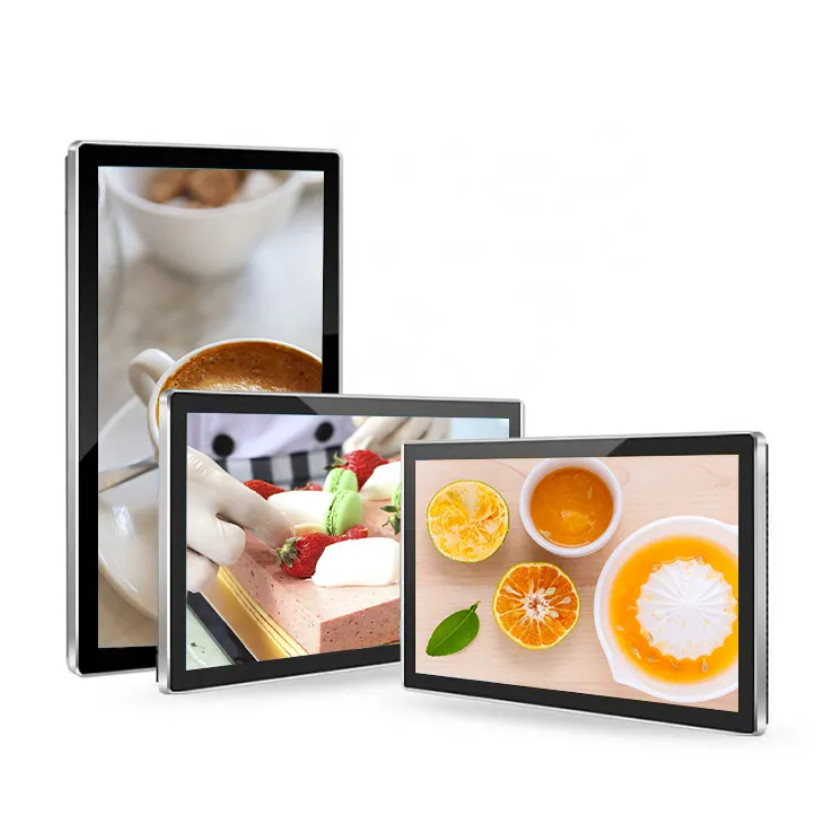

21.5 Inch Wall Mounted Digital Signage Elevator Advertising 300 Nits

21.5 Inch Digital Signage Android Wall-Mounted Lcd Elevator Advertising Machine Product Paramenters Wall mounted digital signage smart LCD advertising screen Panel Size 18.5" 21.5" 23.8" 27" Display size 409.8*230.4 mm 476*268 mm 526*296 mm 597.6*336.15 mm Product size 508*305*56 mm 515*311*55 mm ...

Brand Name: MTHGH
Model Number: XYC
Minimum Order Quantity: 1 Set
Price: Negotiable
Supply Ability: 10000 Piece
Product Details
Highlight:

21.5 Inch Wall Mounted Digital Signage

,

Wall Mounted Digital Signage 300 Nits

,

21.5 Digital Signage Elevator Advertising
Application: Indoor
Panel Size: 21.5 Inches, Custom Size Optional
Supplier Type: Original Manufacturer
Brand Name: Tvision
Function: SDK
Specification: Wall Mount Lcd Display, Advertising Display
Resolution: 3840*2160 RGB
Operating System: Android OS (5.1 Or 6.0 Or 9)/ Windows OS (10,8,7) I3,i5,i7
Brightness: 300 Nits
Viewing Angle: 178(H)/178(V)
Overall Size: 508.4x305x56.2mm
Color: Black, Sliver, Or Custom
Pixel Pitch: 248.25*248.25 Um
Media Available: Datasheet, Photo, EDA/CAD Models
Model Number: TXG215-B01
Use: Advertising Publish, Elevator
Pixels: 6mm
Material: Aluminum Case+Tempered Glass Panel
Motherboard: Standard: XM.H560.F Optional: RK3288/RK3399/A40
Network: Support LAN/WLAN/4G Network
Contrast Ratio: 5000:1
Active Display Area: 476.64 (H) X 268.11 (V)(mm)
Product Description
Detailed Specifications & Features
21.5 Inch Digital Signage Android Wall-Mounted Lcd Elevator Advertising Machine
Product Paramenters
Wall mounted digital signage smart LCD advertising screen

Panel Size
18.5"
21.5"
23.8"
27"
Display size
409.8*230.4 mm
476*268 mm
526*296 mm
597.6*336.15 mm
Product size
508*305*56 mm
515*311*55 mm
564*345*55 mm
644*382*60 mm
Pixel Pitch
300*300 um
248.25*248.25 um
274.5*274.5 um
311.25*311.25 um
Brightness
250 Nits
250 Nits
350 Nits
300 Nits
Power
≤55W
≤55W
≤57W
≤60W

Panel Size
32"
40"
43"
50"
Display size
697*392 mm
878*485 mm
941*529 mm
1095*616 mm
Product size
750*448*64 mm
934*541*79 mm
1002*596*81 mm
1143*667*82 mm
Pixel Pitch
170.25*510.75 um
152.45*449.4 um
81.7*245.1 um
190.3*570.8 um
Brightness
450 Nits
300 Nits
450 Nits
350 Nits
Power
≤55W
≤75W
≤75W
≤108W

Panel Size
55"
58"
65"
OEM
Display size
1209*680 mm
1270*721 mm
1428*803 mm

Product size
1280*757*86 mm
1330*781*90 mm
1503*880*101 mm

Pixel Pitch
630*630 um
330.75*334 um
248*744 um

Brightness
500 Nits
350 Nits
400 Nits

Power
≤108W
≤120W
≤165W










Panel Features
Native Resolution
3840*2160 pixels
Aspect Ratio
16:9
Contrast Ratio
5000:1
Viewing Angle
178(H)/178(V)
Response Time
8ms
Display Color
8 bit/16.7M
Frame Rate
60Hz
Backlight
LED
Life Time
>30000 Hrs










OS Functions

OS system
Android 5.1/6.0/7.1, Windows(i3, i5, i7), USB plug&play
Motherboard model
RK3288(RK3399 or A40I(A64) or A40I(A83T) Option)
CPU
Quad-core Cortex-A17
GPU
Quad-core GPU Mail-T764
RAM
DDR 1GB( 2GB /4G Option)
Flash
EMMC 8G (16G/32G Option)
Networking support
4G network / LAN / WLAN / Bluethooth4.0
Video format
AVI, RMVB, MOV, WMV, MP4, MPEG etc.
Picture format
JPG, JPEG, BMP, PNG, GIF
Audio
MP4, WAV, APE, FLAC, AAC etc.




Sofeware Functions
Horizontal/Vertical/Split Screen
Customized Play & Power On/Off
RTC timing clock
System watchdog
Support full seamless switching
Support Web/Local Info.Publish
Ports
Input Ports
HDMI*2, LAN/RJ45*1, USB*2, SD*1 TF*1
Output Ports
Earphone*1, Speaker 5W*2

Power Feature
Power supply
100V-240V, 50-60 Hz
Power Saving
≤1W
Power consumption

Accessory
Accessory
Warranty Card*1, User manual*1, Remote Control, Power Cord*1, WIFI Antenma*1
