Industrial Mini PC IBOX-603 Plus With Intel Core I5 6200U Processor

1 Set
MOQ
Negotiable
Price
Industrial Mini PC IBOX-603 Plus With Intel Core I5 6200U Processor
Features Gallery Product Description Request A Quote
Features
Specifications
Expansion Slots: Mini PCIe, MSATA
Serial Ports: 2 *COM
Display Port: 1*VGA，1*HDMI
Operation System: Windows, LINUX
Temp: -20℃～60℃
Hard Disk: 1 TB
Network: 5*Intel I211-AT 1000M LAN（Support 4*802.3af Standard POE LAN）
Power Supply: Support DC 9～36V Wide Voltage Input
Highlight:

Compact Industrial Mini PC

,

Linux OS Industrial Mini PC

,

1TB HDD Industrial Mini PC
Basic Infomation
Place of Origin: China
Brand Name: MTHGH
Certification: CE/CCC/FCC Class A/ROHS
Model Number: IBOX-603
Payment & Shipping Terms
Packaging Details: Standard carton package : carton+ plastic bag+ foam+ honeycomb paperboard+ pack thread.
Delivery Time: 7-10 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000 Set
Product Description

Industrial Mini PC IBOX-603

Intel® the 6th Generation Core™ i3/i5/i7 Processor

Fanless Industrial PC For Machine Vision:



Fanless Mini PCs
MTHGH offers a line of quiet computers with fanless designs that operate without the need for noisy cooling fans. Typical PC cooling fans draw in dirt and dust from their operating environment, which can cause catastrophic failure or unexpected downtime.
We build high-availability computers that dissipate heat through specially designed chassis and heat pipe technology. MTHGH fanless computer products are ideal for a variety of applications including: audio/video recording, embedded control, Internet of Things (IoT), digital signage, interactive kiosks, thin clients, and human machine interface applications.



Features:

◇ All aluminum structure,fanless design；
◇ Onboard Intel Skylake-U 6th Generation Core i3/i5/i7；
◇ Max. Support DDR4 1866/2133 16GB RAM；
◇ Support 32 road Opto-couplers isolation GPIO Signal；
◇ Support 5*LAN(Support 4*802.3af standard POE LAN)
◇ Support DC 9～36V wide voltage Input；
◇ Support OS:
Windows7Windows8Windows10Liunx





 Specification:

Model IBOX-603
Color Black(Color can be customized)
Material High-quality all aluminum,surface anodic oxidation
Processor Onboard Intel Celeron 3855U(Dual core dual threading,1.6 GHz)
  Onboard Intel Core i3 6100U(Dual core quad threading,2.3 GHz)
  Onboard Intel Core i5 6200U(Dual core quad threading,2.3GHz,Max turbo 2.8GHz)
  Onboard Intel Core i7 6500U(Dual core quad threading,2.5GHz,Max turbo 3.1GHz)
CPU Architecture Skylake-U
RAM Support 1*DDR4 1866/2133 SODIMM RAM Slot,Max. Support 16GB
BIOS AMI EFI BIOS
Display Chip Integrated Intel HD Graphics 510 / 520
Display Port 1*VGA,1*HDMI

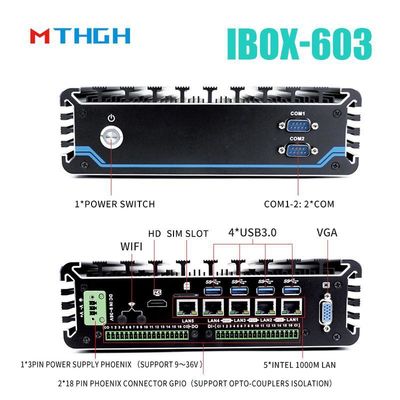

Front I/O 2*COM,1*Power Switch
Rear I/O 4*USB3.0,1*VGA,1*HDMI,1*3 PIN Power Supply Phoenix Connector (Support 9～36V wide voltage Input)
  5*Intel 1000M LAN,2*18 PIN Phoenix Connector GPIO(Support Opto-couplers isolation)
Expansion Slot Support 1*MINI PCIE Slot(WIFI/3G/4G Optional),Embedded SIM Slot
  Support 1*MINI PCIE Slot(Support MSATA)
Network 5*Intel i211-AT 1000M LAN(Support 4*802.3af standard POE LAN)
Storage 1*MSATA Slot,1*2.5” HDD
Power Supply Support DC 9～36V wide voltage Input
Other Function Auto power on when there is electricity,Timing boot,Wake on LAN,PXE boot,Watchdog(0～255 level)(Standard version doesn’t set these function)
Work Temp 0℃ ～ +50℃(Commercial HDD),-20℃ ～ +60℃(Industrial SSD),Surface air flow
Work Humidity 5% ～ 95% non-condensing
Certificates CE, CCC, FCC Class A, ROHS
Dimension 230*166*68mm【Not include bracket】
Net Weight 2.3 kg【Not include bracket】
Application

Industrial automation,Machine vision,Transportation industry,Power monitoring,etc.

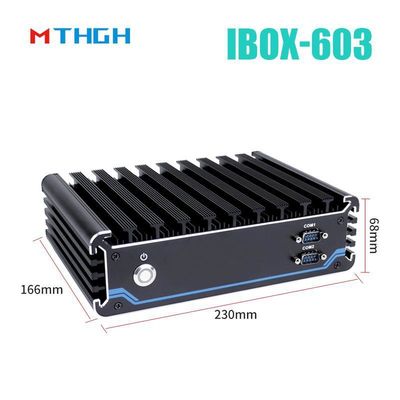

IBOX-603 Drawing:

IBOX-603 Drawing

IBOX-603 Application:

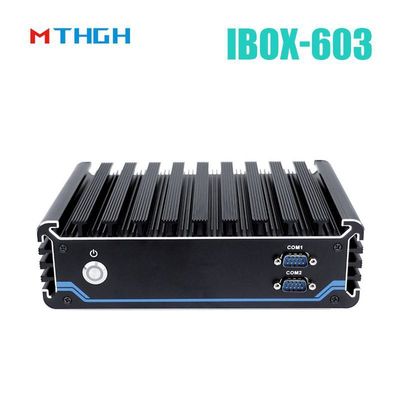

Industrial Mini PC IBOX-603 Plus With Intel Core I5 6200U Processor 01

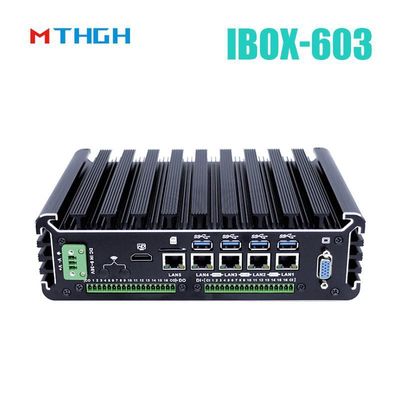

Industrial Mini PC IBOX-603 Plus With Intel Core I5 6200U Processor 02

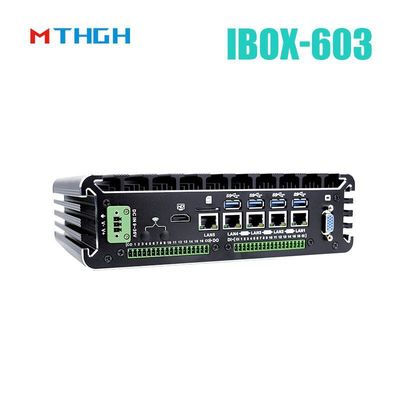

Industrial Mini PC IBOX-603 Plus With Intel Core I5 6200U Processor 03

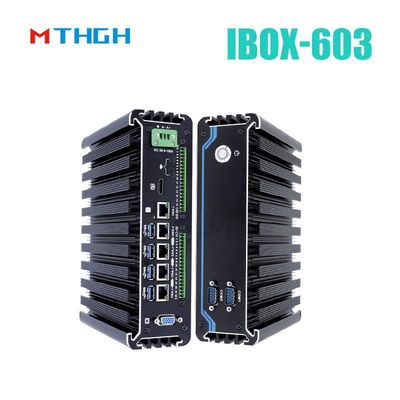

Industrial Mini PC IBOX-603 Plus With Intel Core I5 6200U Processor 04

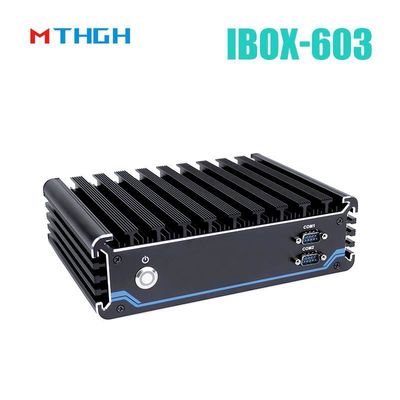

Industrial Mini PC IBOX-603 Plus With Intel Core I5 6200U Processor 05

Industrial Mini PC IBOX-603 Plus With Intel Core I5 6200U Processor 06
