IEXP-502 Industrial Mini PC With Mini PCIe Expansion Slot Windows/Linux Operating System
IEXP-502 Industrial Mini PC With Mini PCIe Expansion Slot Windows/Linux Operating System
IEXP-502 Industrial Mini PC With Mini PCIe Expansion Slot Windows/Linux Operating System
IEXP-502 Industrial Mini PC With Mini PCIe Expansion Slot Windows/Linux Operating System
IEXP-502 Industrial Mini PC With Mini PCIe Expansion Slot Windows/Linux Operating System
IEXP-502 Industrial Mini PC With Mini PCIe Expansion Slot Windows/Linux Operating System
IEXP-502 Industrial Mini PC With Mini PCIe Expansion Slot Windows/Linux Operating System
IEXP-502 Industrial Mini PC With Mini PCIe Expansion Slot Windows/Linux Operating System

IEXP-502 Industrial Mini PC With Mini PCIe Expansion Slot Windows/Linux Operating System

Product Details

Place of Origin: China

Brand Name: MTHGH

Certification: CE/CCC/FCC Class A/RoHS

Model Number: IEXP-502

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: Negotiable

Packaging Details: Standard carton package : carton+ plastic bag+ foam+ honeycomb paperboard+ pack thread.

Delivery Time: 7-10 work days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 10000 Set

Get Best Price

Product Details

Product Description
Product Details
Highlight:

Mini PCIe Industrial Mini PC

,

Linux Industrial Mini PC

,

Windows Industrial Mini PC

Chassis:
All Aluminum Chassis
Processor:
I3/i5/i7
Dimension:
225 * 240 * 83 Mm
BIOS:
AMI UEFI BIOS
Hdd Rotation Speed:
SSD
Expansion Slots:
Mini PCIe, MSATA
Hard Drive Capacity:
256GB
Color:
Grey + White（Colors Can Be Customized）
Type:
Industrial Computer
Chassis:
All Aluminum Chassis
Processor:
I3/i5/i7
Dimension:
225 * 240 * 83 Mm
BIOS:
AMI UEFI BIOS
Hdd Rotation Speed:
SSD
Expansion Slots:
Mini PCIe, MSATA
Hard Drive Capacity:
256GB
Color:
Grey + White（Colors Can Be Customized）
Type:
Industrial Computer
Product Description

Industrial Mini PC IEXP-502



Intel® Core™ i3/i5/i7 10th /11th processor
Industrial computer



Features:

◇ High quality aluminum alloy + sheet metal structure；
◇ Support Core™ i3/i5/i7 10th /11th processor；
◇ Support 2*DDR4 3200 SODIMM memory slot, Max. 64GB；
◇ Support 3*Intel 2.5G Lan；
◇ Support 2*M.2 slot,support the 4G/5G function；
◇ Support 6*COM(COM1,2 can be option RS232/485 mode)；
◇ Support DC 12～24V wide voltage；
◇ Applicable system:
IEXP-502 Industrial Mini PC With Mini PCIe Expansion Slot Windows/Linux Operating System 0IEXP-502 Industrial Mini PC With Mini PCIe Expansion Slot Windows/Linux Operating System 1IEXP-502 Industrial Mini PC With Mini PCIe Expansion Slot Windows/Linux Operating System 2



IEXP-502 Industrial Mini PC With Mini PCIe Expansion Slot Windows/Linux Operating System 3

Product Parameter:

Model IEXP-502
Color Grey + white(Colors can be customized)
Material High quality aluminum alloy (hard anodized surface) + sheet metal structure (spray paint)
Processor Intel Core i3 10305T (quad core eight threads,base 3.0 GHz,burst 4.0 GHz)
Intel Core i5 10500T(six core twelve threads,base 2.3 GHz,burst 3.8 GHz,12MB cache)
Intel Core i7 10700T(eight core sixteen threads,base 2.0 GHz,burst 4.5 GHz,16MB cache)
Memory Support 2 *DDR4 2666/3200MHz SODIMM memory slot,Max. 64GB
BIOS AMI UEFI BIOS
Display chip Integrated Intel UHD Graphics 630 /Intel UHD Graphics 750
Display port 1*HDMI,1*DP(Supports synchronous and asynchronous dual display)

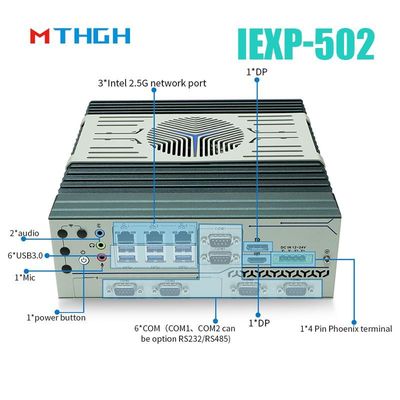

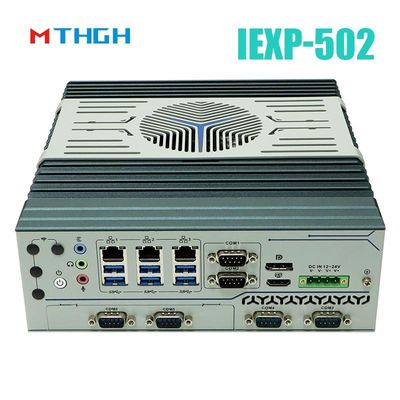

Front I/O 1*4 Pin Phoenix terminal,1*HDMI,1*DP,6*COM(COM1,COM2 can be option RS232/RS485)
6*USB3.0,3*Intel 2.5G network port,1*Mic,2*Audio,1*Power Button
Expansion Support 1*M.2 M-Key 2280 slot(support SATA/PCIE X4 NVME signal)
Support 1*MINI PCIE slot(support WIFI/BT)
Support 2*M.2 B-key slot 3042/3052(support 4G/5G),with SIM card slot
Expansion(the standard isn't included):4*USB2.0,16 bits GPIO
Network 3*Intel i225-V 2.5G LAN port
Storage Support 1*M-Key 2280 slot(support SATA/PCIE X4 NVME),2*2.5inch HDD
Input voltage Support 4 Pin Phoenix terminal ,DC 12～24V wide-voltage input
Other functions Power-on, timed startup, network wake up, PXE startup, watchdog (level 0 to 255), TPM2.0
Working temp. 0℃ ～ +50℃(business HDD),-20℃ ～ +60℃(industrial SSD),Surface air flow
Working humidity 5% ～ 95% Non-condensing state
Certification CE, CCC, FCC Class A, RoHS

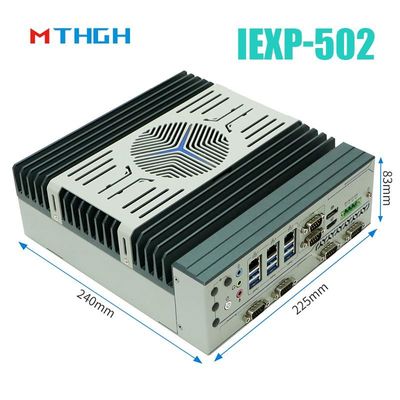

Dimension 225 * 240 * 83 mm
Weight 2.78kg【isn't included the wall mount】

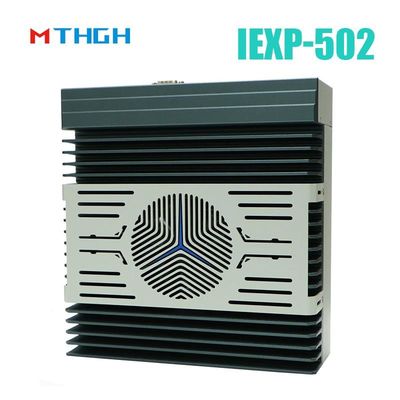

Installation Wall mount(standard),DIN rail mount(Optional),desktop(Default)
Application Industrial automation, medical, logistics, transportation, warehousing, e-education,etc.





Package list
Name Quantity Spec
Power adapter 1 12V 10A
Power cable 1 CN,US,EU,UK plug,etc
Certification 1 Yanling/Neutral
Warranty card 1 adapter
Wall mount 2 Standard





Configuration
Config 1 IEXP-502 Intel Core i3 10305T Standard I/O
Config 2 Intel Core i5-10500T Standard I/O
Config 2 Intel Core i7 10700T Standard I/O
Config 3 Intel Core i5-11600T Standard I/O
Config 4 Intel Core i7-11700T Standard I/O



IEXP-502 Industrial Mini PC With Mini PCIe Expansion Slot Windows/Linux Operating System 4
