55 Inch 4K Multi Purpose Lcd Screen Commercial Video Advertising
MTHGH HD Advertising Players 55 Inch 3500:1 Contrast Ratio.

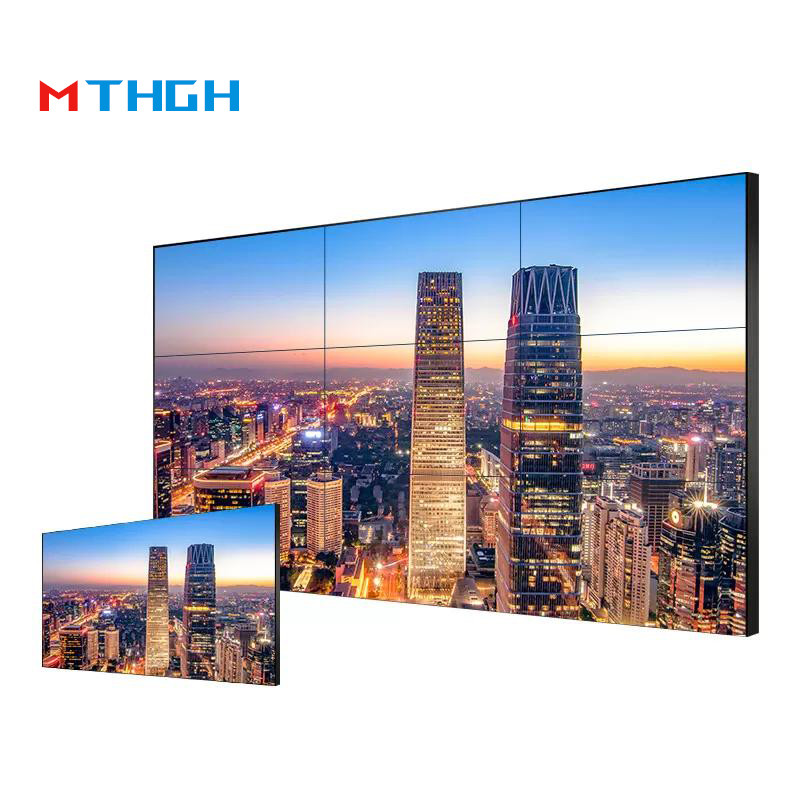

MTHGH Ultra Narrow Bezel 55 inch LCD Video Wall, HD Advertising Players.
Item No. |
Components |
Descriptions |
|
1 |
55" 3.5mm bezel |
500nits brightness,WLED Backlit,(1920x1080) resolution,with 1080P HDMI input |
|
2 |
System controller |
1 in 16output HDMI splitter |
|
3 |
Bracket |

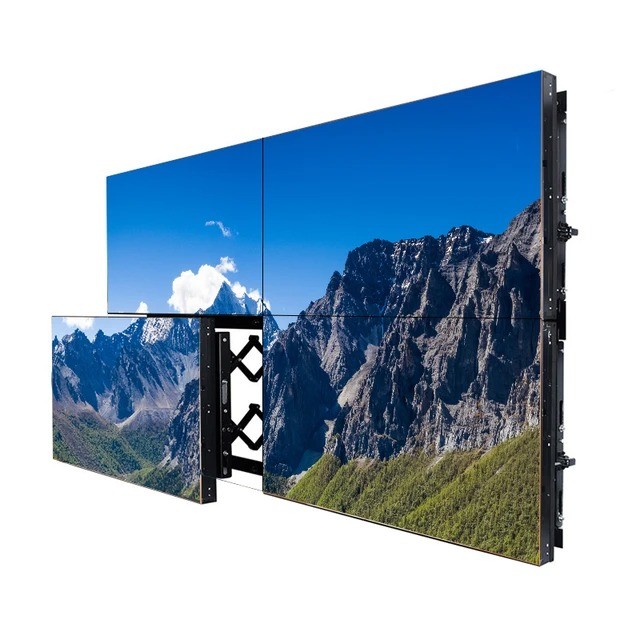

POP out bracket for 49" lcd video wall |
|
4 |
Standard Accessories |
English Manual,IR Controller,Power Cables,RJ45 Cables,RS232-RJ45 Connector |
|
5 |
Packing |
4/5 screens in 1 wooden case |
|
Panel Specifications |
|||
LCD Technology |
LCD Splicing Screen |
||
Active Screen Diagonal |
55 Inch |
||
Total Bezel Width |
1.8(mm) |
||
Aspect Ratio |
16:9 |
||
Physical Resolution |
1920*1080 P |
||
Backlight System |
WLED |
||
Luminance(nits) |
500 cd/m2 |
||
Contrast |
3500:1(typ.) |
||
Viewing Angle |
H 178° or V 178° |
||
Display Colors |
8Bit,16.7M |
||
Refresh Rate |
60(Hz) |
||
Response Time |
<= 6ms |
||
Life(hrs) |
> 60,000(hrs) |
||
MTBF |
> 100,000(h) |
||
Surface |
Anti-glare |
||
Power Supply |
AC100~240V 50/60 HZ |
||
Cooling |
Low noise fans |
||
Working Time Capacity |
7*24*365(hours) |
||
Working Temperature |
0℃~50℃ |
||
Working Humidity |
0.85 |
||
Storage Temperature |
-20~60(°C) | -4~140(°F) |
||
Storage Humidity |
85% non-condensing |
||
1080P HDMI input daisy chain board Signal Inputs, Outputs |
|||
DVI-I DUAL LINK |
1 |
||
HDMI input 2K |
1 |
||
VGA input |
1 |
||
RS232 IN |
1 |
||
RS232 OUT |
2 |
||
IR IN |
1 |
||
AC IN |
AC[100-240V] |
||
Color System Support |
PAL/NTSC/SECAM |
||
Control Type |
IR Remote &Software Control |
||
Menu Language |
English. |
||
Vertical/Horizontal Display |
Support. |
