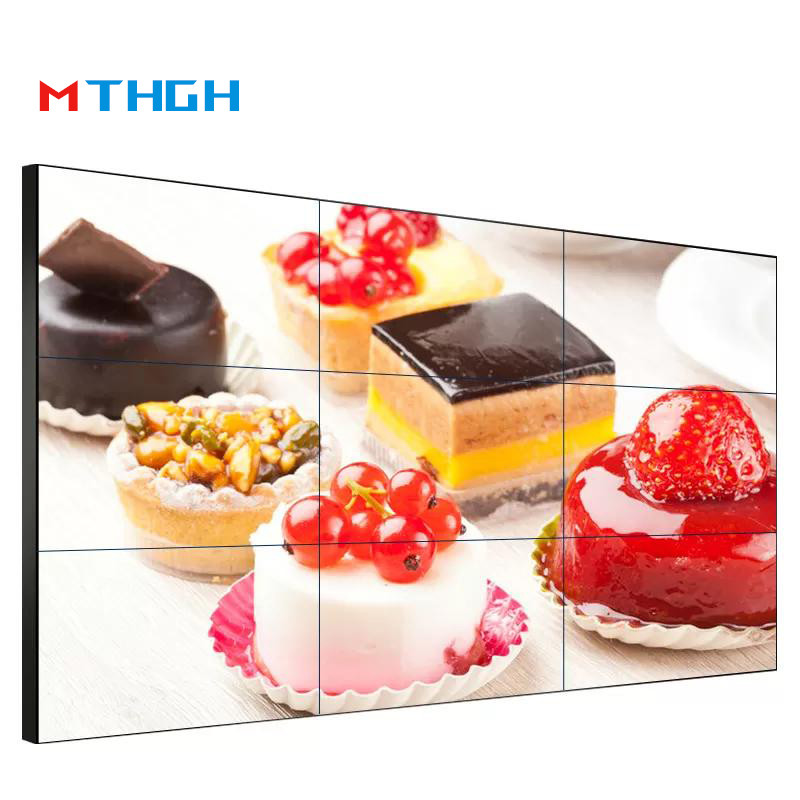

55 Inch 4k 8k Wall Mounted Commercial Advertising Video Lcd Splicing Screen

1 Set
MOQ
Negotiable
Price
55 Inch 4k 8k Wall Mounted Commercial Advertising Video Lcd Splicing Screen
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: 55" LCD Splicing Screen
Resolution: 3840*2160
Power Supply: AC(110V-260V)
Contrast: 3500:1
Brightness: 500[Nits]
Type Of Light Source: WLED
Physical Seams: 3.5mm
Perspective: 178°*178°(H*V)
Input Control: 60,000 Hours
Enter: BNC/VGA/DVI/HDMI
Operating Temperature: 0~50℃
Highlight:

Wall Mount LCD Splicing Screen

,

Commercial LCD Splicing Screen

,

Advertising lcd video wall screen

Basic Infomation
Place of Origin: China
Brand Name: MTHGH
Certification: CE FCC
Model Number: XYC-55
Payment & Shipping Terms
Packaging Details: Standard carton package : carton+ plastic bag+ foam+ honeycomb paperboard+ pack thread.
Delivery Time: 7-10 Work Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000 Piece
Product Description

55 Inch 4k Tv Lcd Video Wall Display 1.8mm Ultra Narrow Bezel AC 110-240V



MTHGH Seamless lcd video wall,55 inch lcd splicing wall advertising display.



Item No. Components Descriptions

1

55" 3.5mm bezel

500nits brightness,WLED Backlit,1920x1080 resolution,with 1080P HDMI input

2

System controller

1 in 16output HDMI splitter

3

Bracket

POP out bracket for 49" lcd video wall

4

Standard Accessories

English Manual,IR Controller,Power Cables,RJ45 Cables,RS232-RJ45 Connector

5

Packing

4/5 screens in 1 wooden case

Panel Specifications

LCD Technology

Original LCD splicing screen

Active Screen Diagonal

55" customizable 65"75"

Total Bezel Width

1.8(mm)

Aspect Ratio

16:9

Physical Resolution

3840*2160

Backlight System

WLED

Luminance

500(nits) cd/m2

Contrast

3500:1 (typ.)

Viewing Angle

H(178°)* V(178°)

Display Colors

8Bit,16.7M

Refresh Rate

60Hz

Response Time

less than 6ms

Life(hrs)

more than the 60,000(hrs)

MTBF

more than the 100,000 h

Surface

Anti-glare

Power Supply

AC 100V~240V 50/60 HZ

Cooling

Low noise fans

Working Time Capacity

7*24*365(hours)

Working Temperature

0℃~50℃

Working Humidity

0.85

Storage Temperature

~20~60°C , ~4~140°F

Storage Humidity

85% non-condensing

1080P HDMI input daisy chain board Signal Inputs, Outputs

DVI-I DUAL LINK

1

HDMI input 2K

1

VGA input

1

RS232 IN

1

RS232 OUT

2

IR IN

1

AC IN

AC 100V~240V

Color System Support

PAL/NTSC/SECAM

Control Type

IR Remote &Software Control

Menu Language

English,Chinese

Vertical/Horizontal Display

Support
