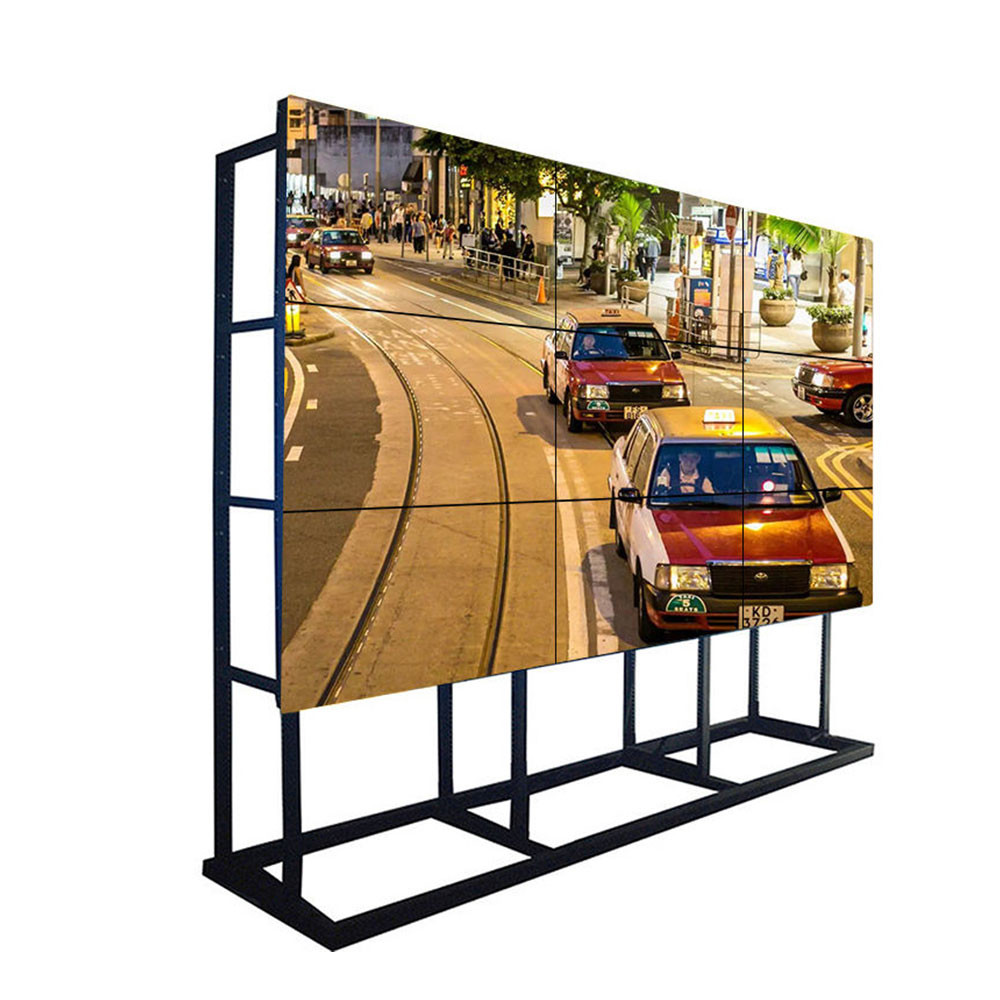

65 Inch Uhd Video Wall LCD Multi Screen With Wide Viewing Angle

Item No.

Components

Descriptions

1

65" XYC 3.5mm bezel

500nits brightness,WLED Backlit,1920X1080 resolution,with 1080P HDMI input

2

System controller

1 in 16output HDMI splitter

3

Bracket

POP out bracket for 49" lcd video wall

4

Standard Accessories

English Manual,IR Controller,Power Cables,RJ45 Cables,RS232-RJ45 Connector

5

Packing

4/5 screens in 1 wooden case

LCD Technology

Original XYC DID LCD

Active Screen Diagonal

65" or Customized 46"49"55"75"

Total Bezel Width

1.8(mm)

Aspect Ratio

16:9

Physical Resolution

1920X1080 P

Backlight System

WLED

Luminance(nits)

500(cd/m2)

Contrast

3500:1 (typ.)

Viewing Angle

H 178°|V 178°

Display Colors

8Bit,16.7M

Refresh Rate

60(Hz)

Response Time

<=6ms

Life(hrs)

>60,000(hrs)

MTBF

>100,000(h)

Surface

Anti-glare

Power Supply

AC 100v~240V 50/60 HZ

Cooling

Low noise fans

Working Time Capacity

7x24x365 (hours)

Working Temperature

0℃~50℃

Working Humidity

0.85

Storage Temperature

~20~60°C | ~4~140°F

Storage Humidity

85% non-condensing

DVI-I DUAL LINK

1

HDMI input 2K

1

VGA input

1

RS232 IN

1

RS232 OUT

2

IR IN

1

AC IN

AC100-240V

Color System Support

PAL/NTSC/SECAM

Control Type

IR Remote &Software Control

Menu Language

English

Vertical/Horizontal Display

Support
