Home > products > LCD Splicing Screen > 3840*2160 LCD Splicing Screen 65 Inch 8k RJ45 RS232 Protocol

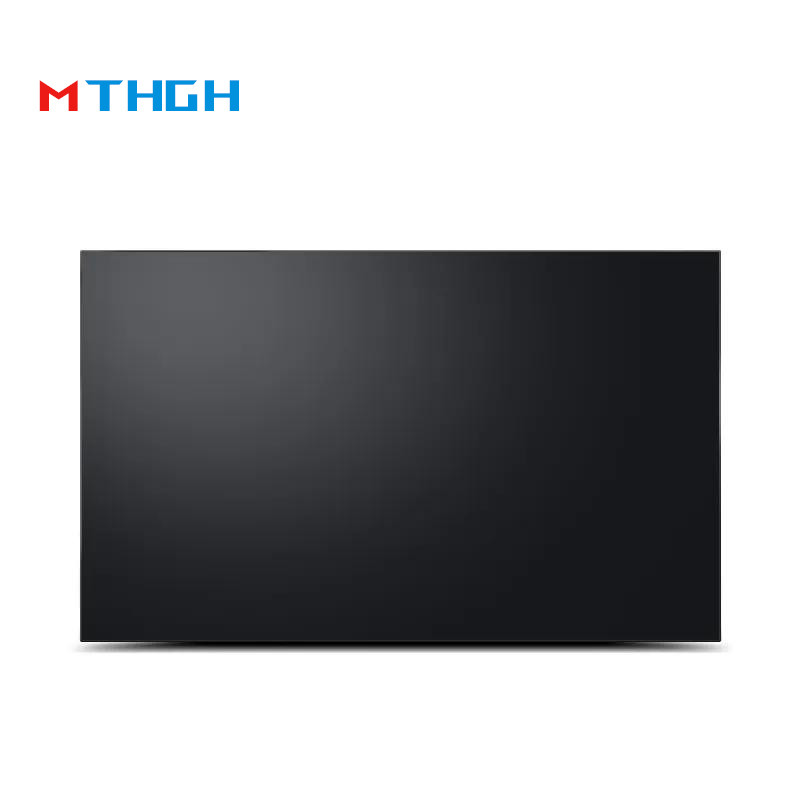

3840*2160 LCD Splicing Screen 65 Inch 8k RJ45 RS232 Protocol

Product Details

Place of Origin: China

Brand Name: MTHGH

Certification: CE FCC

Model Number: XYC-65

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: Negotiable

Packaging Details: Standard carton package : carton+ plastic bag+ foam+ honeycomb paperboard+ pack thread.

Delivery Time: 7-10 Work Days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 10000 Piece

Get Best Price
Product Details
Highlight:

LCD Splicing Screen 65 Inch

,

LCD Splicing Screen 8k

Resolution:
1920*1080 P
Product Name:
LCD Splicing Screen
Brightness:
500cd/m² Or 700cd/m²
Power Supply:
AC110V~260V
Contrast:
1200:1
Type Of Light Source:
WLED
Perspective:
178X178
Physical Seams:
3.5mm
Input Control:
60,000 Hours
Output Control:
RJ45 (RS232 Protocol)
Color:
16.7M
Enter:
BNC/VGA/DVI/HDMI
Operating Temperature:
0~50℃
Operating Voltage:
100-240V 50/60Hz
Rated Power:
350W
Working Humidity:
20%~80% No Condensation
Net Weight Of The Whole Machine:
35kg
Appendix:
Power Cord, Certificate Of Conformity, Warranty Card And Manual
Resolution:
1920*1080 P
Product Name:
LCD Splicing Screen
Brightness:
500cd/m² Or 700cd/m²
Power Supply:
AC110V~260V
Contrast:
1200:1
Type Of Light Source:
WLED
Perspective:
178X178
Physical Seams:
3.5mm
Input Control:
60,000 Hours
Output Control:
RJ45 (RS232 Protocol)
Color:
16.7M
Enter:
BNC/VGA/DVI/HDMI
Operating Temperature:
0~50℃
Operating Voltage:
100-240V 50/60Hz
Rated Power:
350W
Working Humidity:
20%~80% No Condensation
Net Weight Of The Whole Machine:
35kg
Appendix:
Power Cord, Certificate Of Conformity, Warranty Card And Manual
Product Description

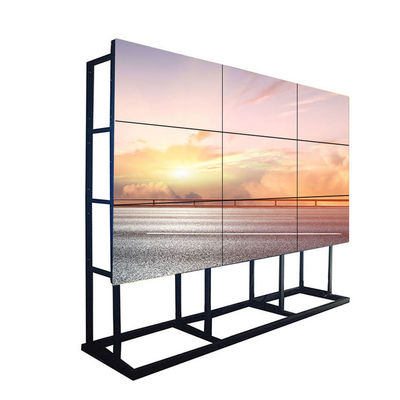

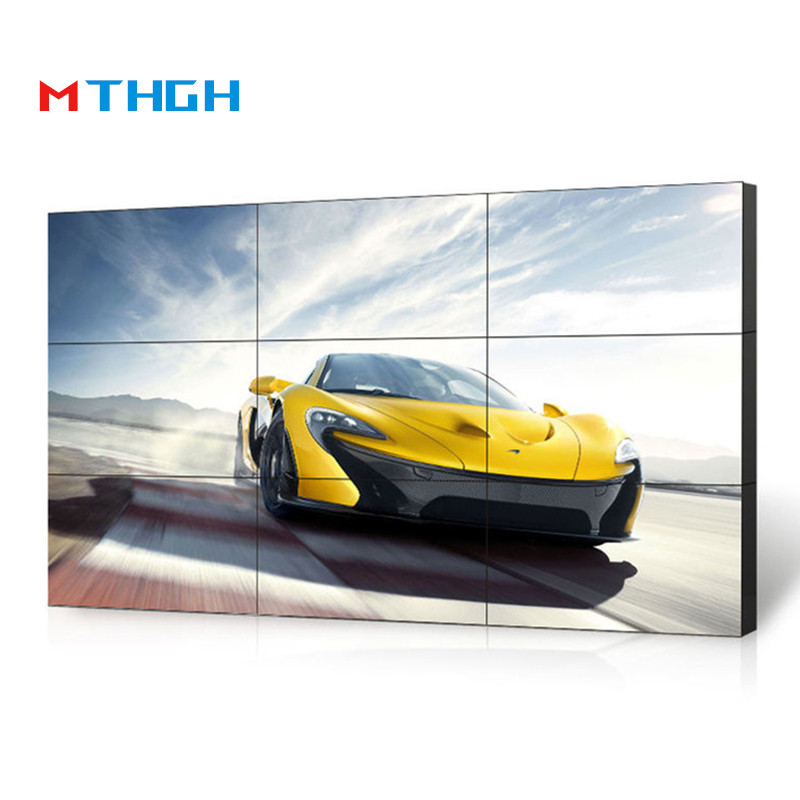

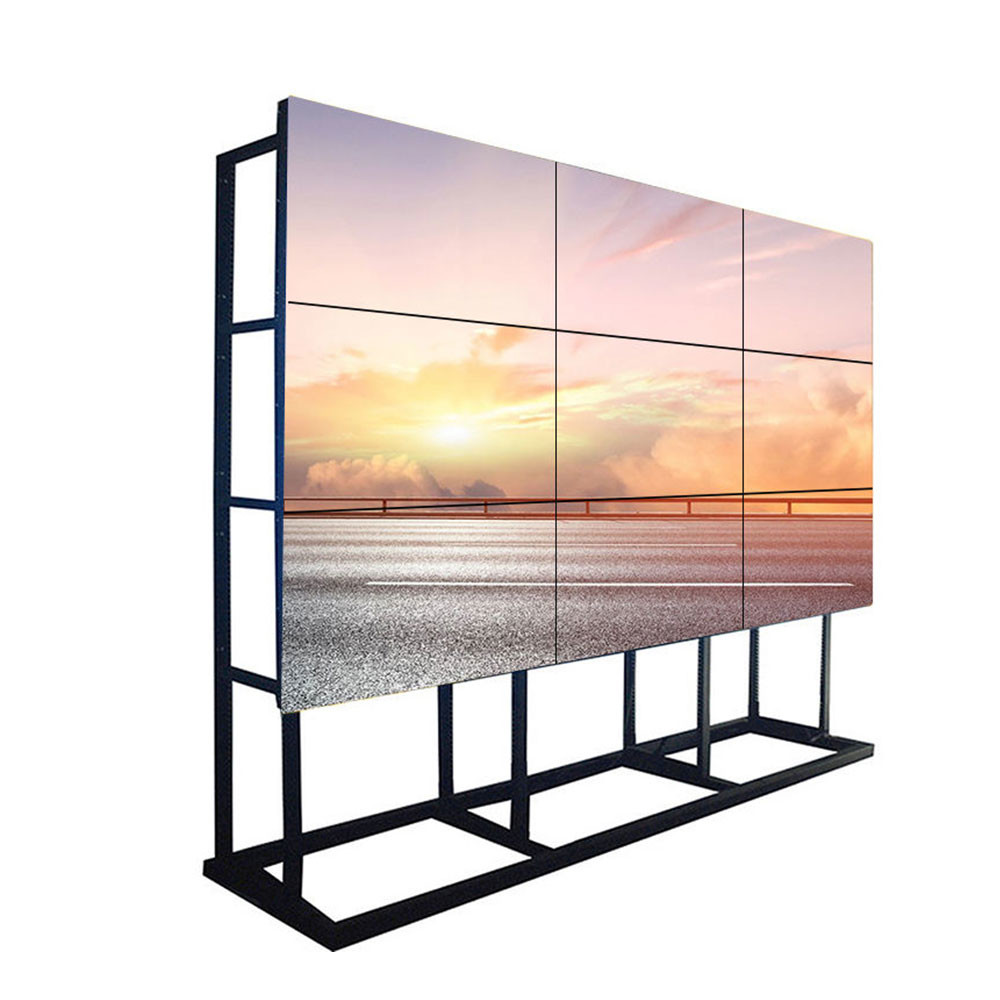

Video Wall Solutions Digital Display Screen 3.5mm Ultra Narrow Bezel Seamless 3x3



65 Inch indoor hd ultra narrow bezel wall mounted multi panel lCD video wall



Item No. Components Descriptions

1

65 inch Mthgh 3.5mm bezel

500nits brightness,WLED Backlit,1920*1080 resolution,with 1080P HDMI input

2

System controller

1 in 16output HDMI splitter

3

Bracket

POP out bracket for 65" lcd video wall

4

Standard Accessories

English Manual,IR Controller,Power Cables,RJ45 Cables,RS232-RJ45 Connector

5

Packing

4/5 screens in 1 wooden case

Panel Specifications

LCD Technology

Original Mthgh DID LCD

Active Screen Diagonal

65 inch

Total Bezel Width

1.8mm

Aspect Ratio

16:9

Physical Resolution

1920*1080

Backlight System

WLED

Luminance(nits)

500cd/m2

Contrast

3500:1 (typ.)

Viewing Angle

H 178°|V 178°

Display Colors

8Bit,16.7M

Refresh Rate

60Hz

Response Time

<= 6ms

Life(hrs)

> 60,000(hrs)

MTBF

> 100,000 h

Surface

Anti-glare

Power Supply

AC100~240V 50/60 HZ

Cooling

Low noise fans

Working Time Capacity

7x24x365hours

Working Temperature

0℃~50℃

Working Humidity

0.85

Storage Temperature

-20-60°C | -4-140°F

Storage Humidity

85% non-condensing

1080P HDMI input daisy chain board Signal Inputs, Outputs

DVI-I DUAL LINK

1

HDMI input 2K

1

VGA input

1

RS232 IN

1

RS232 OUT

2

IR IN

1

AC IN

AC100-240V

Color System Support

PAL/NTSC/SECAM

Control Type

IR Remote &Software Control

Menu Language

English

Vertical/Horizontal Display

Support
