Name: 65 Inch Smart Digital Blackboard Classroom Interactive Electronic Blackboard
Brand: Xingyicheng (Shenzhen) Technology Co., Ltd.
SKU: XYC-65
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Product Name: 65" Intelligent Black Board

Resolution: 3840*2160@60Hz

Processor: I3/i5/i7/i9 Processor

Ram: 4GB/8GB

Screen Size: 65 Inch,75"86"98" Optional

Contrast Ratio: 5000:1

Interface: USB2.0/3.0

Size: 65 Inch

Storage: 64GB

Application: School Teaching, Meeting

Highlight:

65 Inch Smart Digital Blackboard

Classroom Smart Digital Blackboard

Classroom Interactive Electronic Blackboard

Basic Infomation

Place of Origin: China

Brand Name: MTHGH

Model Number: XYC-65

Payment & Shipping Terms

Packaging Details: Standard carton package : carton+ plastic bag+ foam+ honeycomb paperboard+ pack thread.

Delivery Time: 7-10 work days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 10000 Set

Gallery

65 Inch Smart Digital Blackboard Classroom Interactive Electronic Blackboard

Product Description

New generation 65 inch smart digital classroom interactive electronic blackboard

Smart blackboard can be customized in size: 75 inches, 86 inches, 98 inches.

Specification

Smart Blackboard Android 11 OS
Model	IB75	IB86
Display specification
Diagonal display size	75"	86"
LED Brand	CSOT/BOE
Bezel color	Aluminum frame(Black & Silver color)
Back Light	Direct type LED, OD18
Active area (mm)/(H) * (V)	1649.66 * 927.93	1895.04 * 1065.96
Resolution	3840*2160 @60HZ
Aspect Ratio	16:9
Contrast Ratio	1200:1/4000:1
Colors	1.07 billion colors
Brightness	350cd/m2
Viewing angle	178°
Glass hardness	Mohs-7 level
Screen surface	3mm thickness Anti-Glare glass
Transmittance	≥82%
Haze	≤2.5
Panel Interactivity
Bonding Technology	Optical Bonded
Touch technology	NANO Capacitive touch
Touch points	20 points (Win 7/8/10/11) 10 points touch (Android)
Touch accuracy	≤2mm
Recognition	Finger or passive stylus
Response Rate	≤6ms
Minimum object size	Single touch ≥1.6mm Multiple touch ≥3mm
Response Time	≤5 ms
Transmittance	≥82%
Haze	≤2.5
Speaker	15W*2
Hotspot	Yes
Bluetooth	V 5.0(2.4Hz)
WiFi	802.11 ac/b/g/n/ac, 2.4GHz/5 GHz
Windows OPS Slot	OPS & OPS-C Intel standard
System support	Win10/Win8/Win7/Mac OS /Android/Chrome OS/Linux
Side Blackboard
Material	Aluminum Honeycomb
Color	Black
Quantity	2 pcs, right & left side
Dimension/mm	11081240.3594
Function	with the magnetic absorption function, Chalk could write
Operating system
Android Version	Android 11.0
Chipset	Amlogic T982
CPU	4*ARM Cortex A55
GPU	RM Mali-G52
RAM	4GB(8GB for optional)
ROM	32GB(64GB for optional)
Compliant with	Windows; Mac; Linux; Chrome OS
Front side Connectivity
Front ports	USB3.0 Type A * 3, HD in 2.0 * 1, Touch USB3.0 type B * 1, Type C * 1
Front Button	Indicator: Red/Blue, Lighter Sensor, One kry recover Screen Record/Ratio/V- / V+/Setting/ECO/Power
Front pen Holder	Support
Rear side Connectivity
Rear side ports	RJ45 in 1 RS232 1 SPDIF OUT1 YPBPR IN1 AV in 1 MIC1 Earphone1 VGA in1 Audio in1 HD in2 Touch USB 2.0 Type A 1 USB2.02 TF CARD*1
Physical Specifications
Net Weight /(kg±2)	92	98
Gross Weight /(kg±2)	117	123
Overall size(mm)/(LHW)	4214 * 1240.35 * 94	4214 * 1240.35 * 94
	2340 * 1320 * 310	2340 * 1320 * 310
Carton size(mm)/(LHW)	2400 * 1500 * 370	2400 * 1500 * 370
Electrical
Input Voltage	90-264V AC
Power Consumption(Standby)	<0.5W
Power Consumption	Maximun< 400W	Maximun< 450W
Environmental
Working Temperature	0℃~ 40℃
Storage Temperature	一20℃~ 60℃
Working Humidity	10% ~ 90% RH, Non-Condensing
Storage Humidity	10% ~ 60% RH, Non-Condensing
OPS PC(Optional)
CPU	I5(I3/I7 for optional)
RAM	8G(4G/16G for optional)
ROM	128G SSD (256G/512G)
Standrad	80 PIN(Chinese Standard/international standard)
Dimension/cm	19518042/11918030
Camera(Optional)
Model	UHD Camera
Install Method	Built-in(on the middle-upper frame)
Pixel	12MP
FOV	Diagonal: 94°
Compliant with OS	Windows; Android; Mac; Linux; Chrome OS
Microphone(Optional)
Install Method	Built-in(on the middle-upper frame)
Number	8 Array
Voice Pickup	0-8M
Accessories
Accessories	Stylus * 2, Remote control 1, 2m power cord 1, wall mount kit; Rag 2pcs Water soluble chalk 1box, Wireless dongle(Optional); Smart Pen (Optional)
Installation & Maintance
Wall mounted, Easy to Lift up ahead design to do the maintance

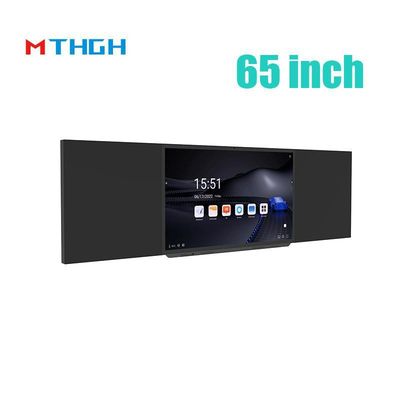

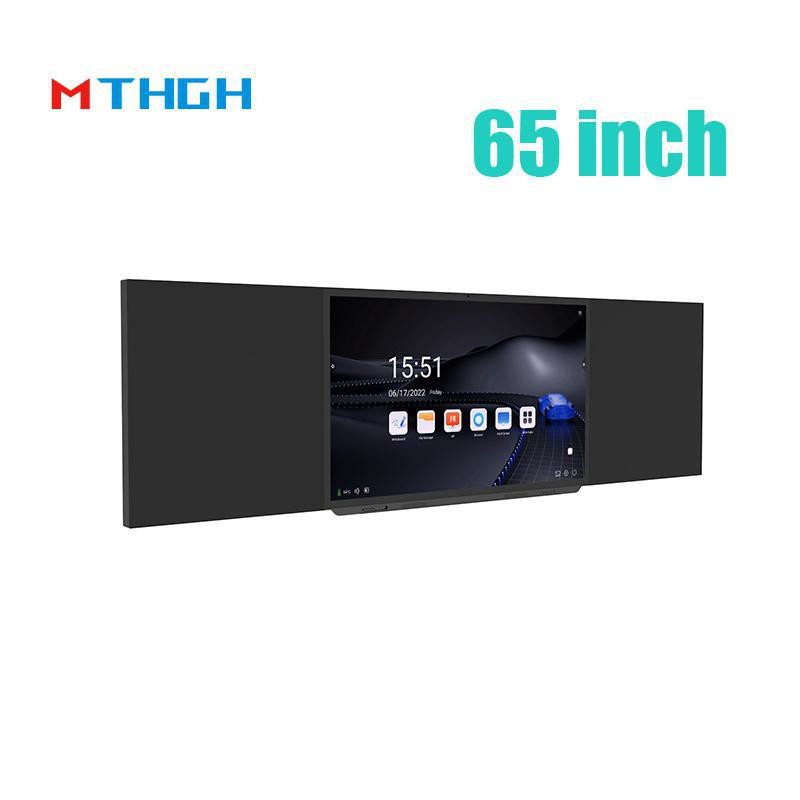

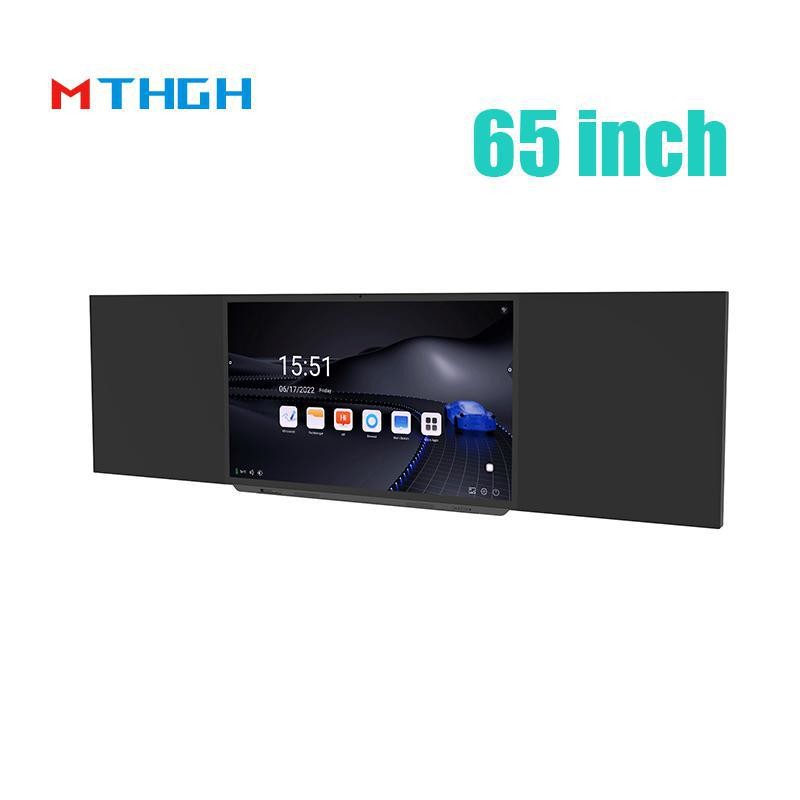

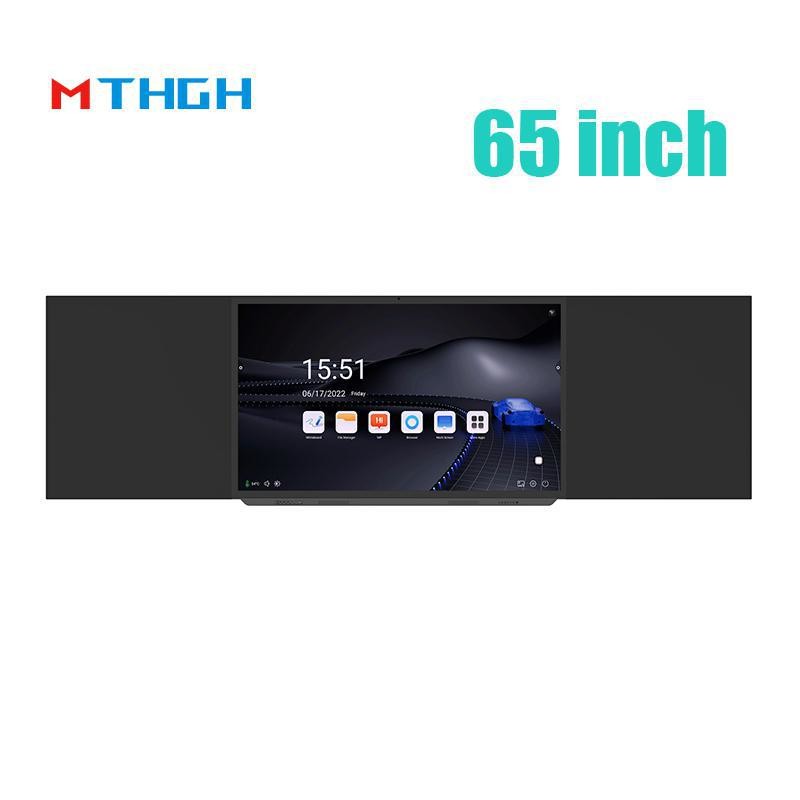

MTHGH E-Blackboard is a new generation of interactive touch screen blackboard, mainly used for presentation and collaborative work in smart education. This smart blackboard consists of two writing boards on the left and right, and a touch screen display in the middle, combining the functions of traditional blackboard and electronic blackboard into one. It supports normal writing with ordinary chalk, dust-free chalk and various liquid pen. MTHGH E-Blackboard effectively combines traditional blackboard and multimedia teaching, bringing a better teaching experience.

65 Inch Smart Digital Blackboard Classroom Interactive Electronic Blackboard 0

MTHGH electronic blackboard adopts an all-in-one design, which integrates a high-definition display, touch screen function, and blackboard writing. You don’t need separately to buy any writing board. The entire surface is seamlessly connected and much larger than a traditional blackboard, providing more collaborative educational space.

65 Inch Smart Digital Blackboard Classroom Interactive Electronic Blackboard 2

With advanced nano touch technology, our smart blackboard supports 20-40 touch points. Users can use a finger, capacitive pen, and chalk to write. It’s an ideal touch screen blackboard for teaching.

65 Inch Smart Digital Blackboard Classroom Interactive Electronic Blackboard 3

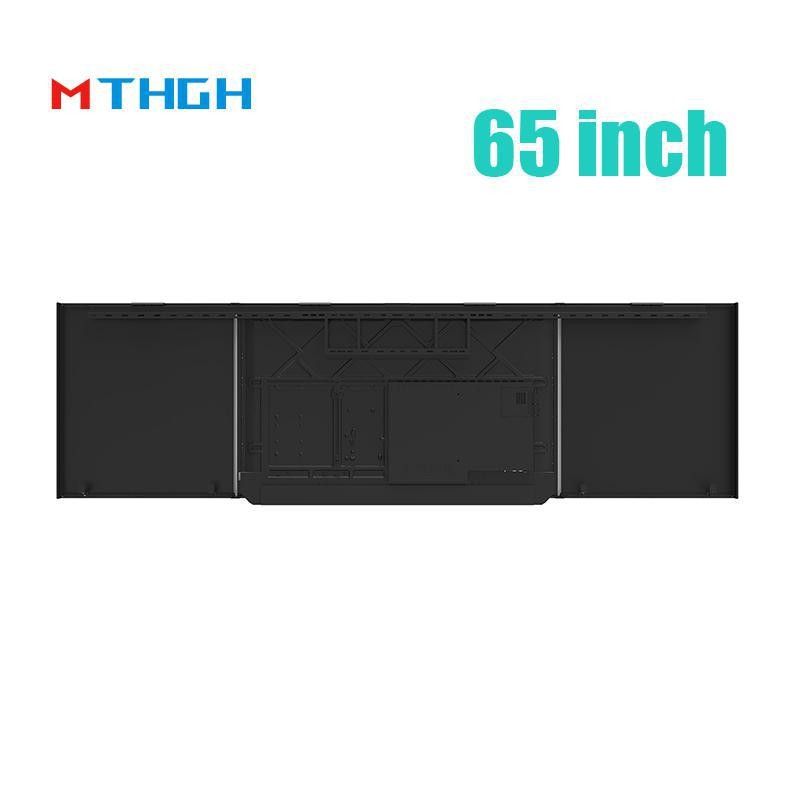

The modular design of MTHGH smart blackboard makes after-sales maintenance simple and low-cost. And it can be shipped safely in one package.

Built in 4k camera, our smart blackboard supports high-definition online video conferencing. The Built-in 8-array microphones have 10 meters pick-up distance.

65 Inch Smart Digital Blackboard Classroom Interactive Electronic Blackboard 4

The touch screen blackboard allows users to choose their favourite home background or theme from the Setting. You can also find other personalized functions and various useful tools. Add a splash of color to your class with our multifunctional electronic blackboard!

65 Inch Smart Digital Blackboard Classroom Interactive Electronic Blackboard 5
